Question: Question 2 1 0 pts If the maximum force that any member can support is 4 5 k N in tension and 5 0 k

Question 2
10 pts

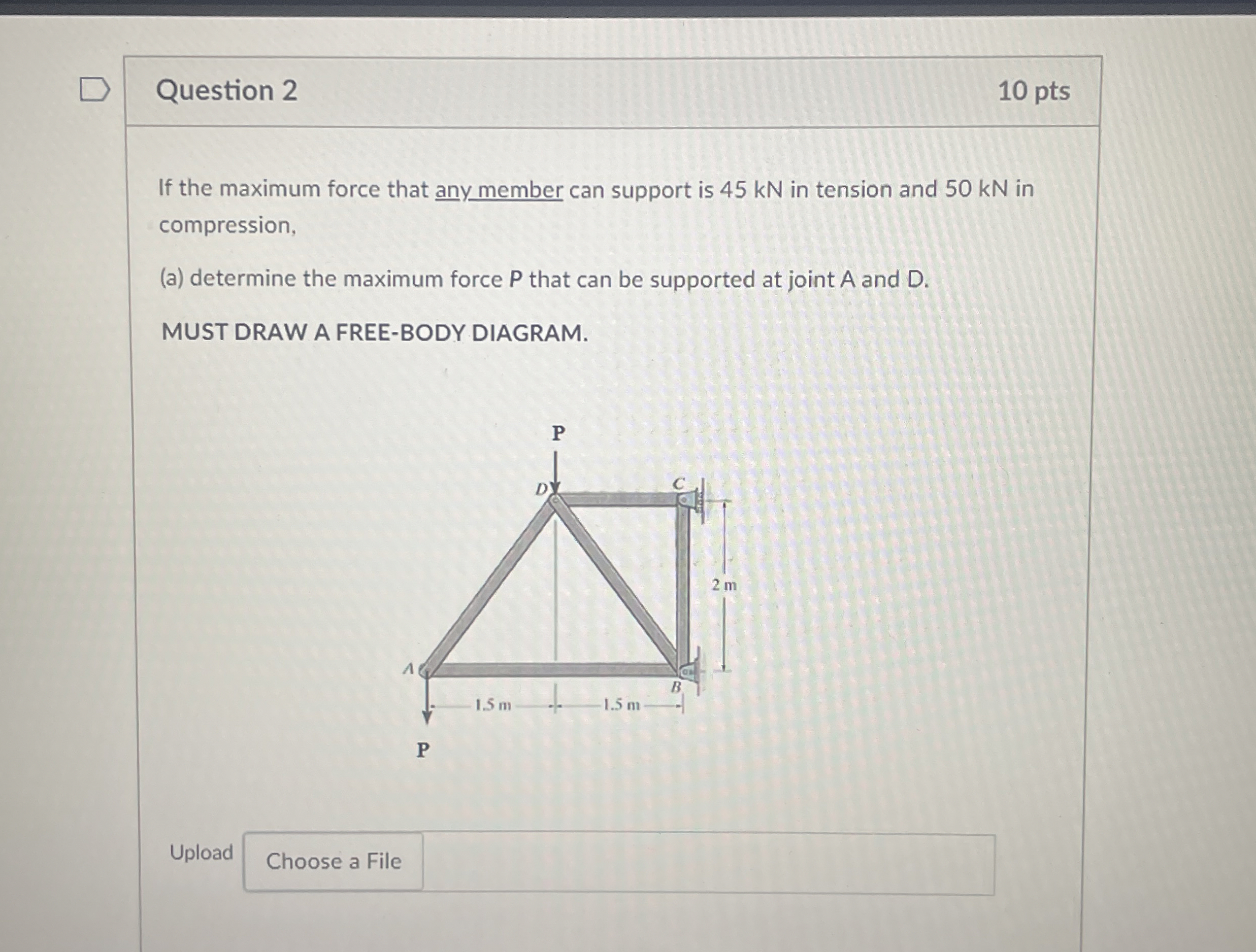

If the maximum force that any member can support is 45kN in tension and 50kN in compression,
(a) determine the maximum force P that can be supported at joint A and D.
MUST DRAW A FREE-BODY DIAGRAM.
P
Upload
Question 2 1 0 pts If the maximum force that any

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
