Question $2$

$(15$ marks$)$

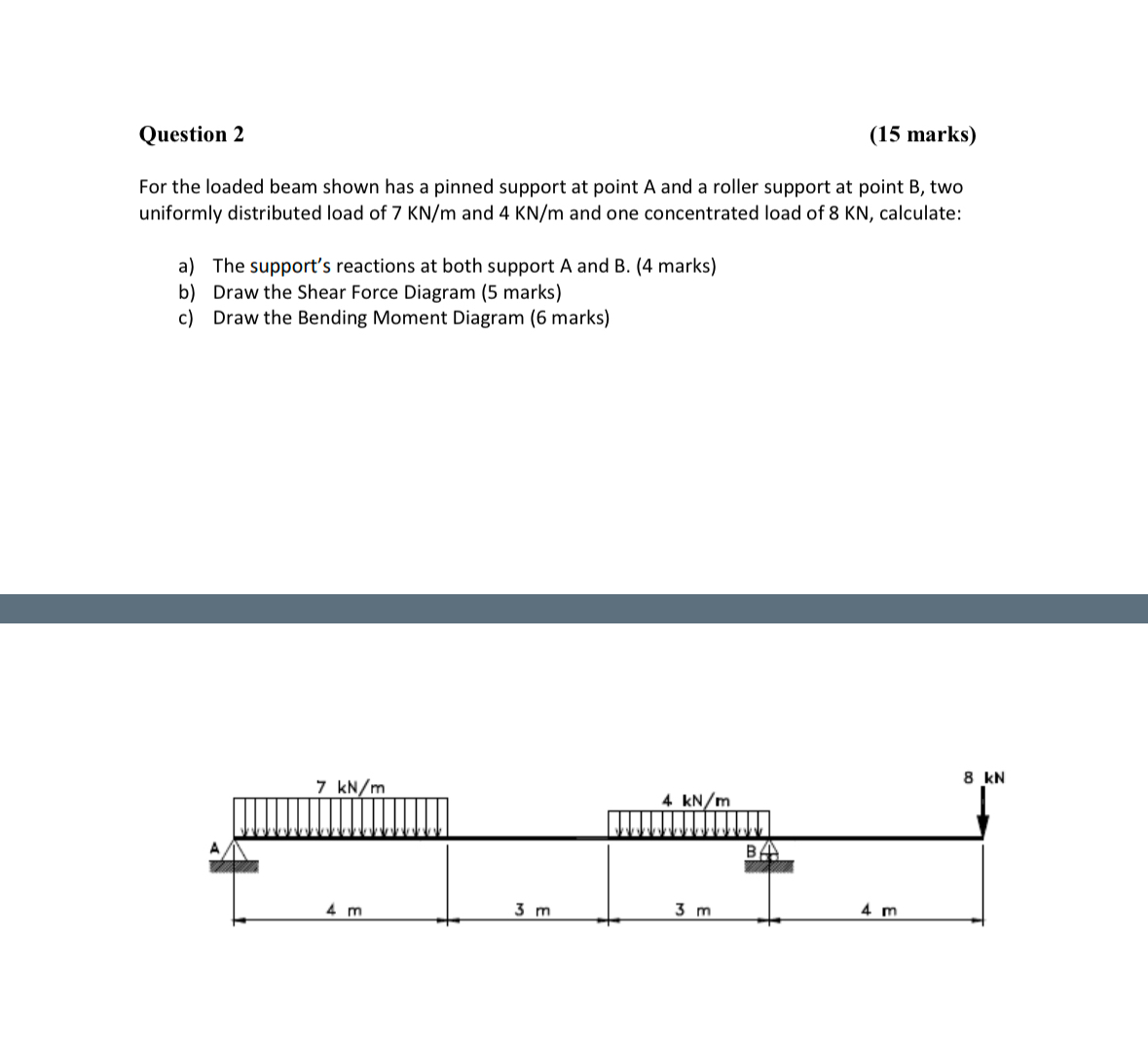

For the loaded beam shown has a pinned support at point A and a roller support at point $B,$ two uniformly distributed load of $7K\frac{N}{m}$ and $4K\frac{N}{m}$ and one concentrated load of $8$ KN $,$ calculate:

a$)$ The support's reactions at both support A and B$.(4$ marks$)$

b$)$ Draw the Shear Force Diagram $(5$ marks$)$

c$)$ Draw the Bending Moment Diagram $(6$ marks$)$
