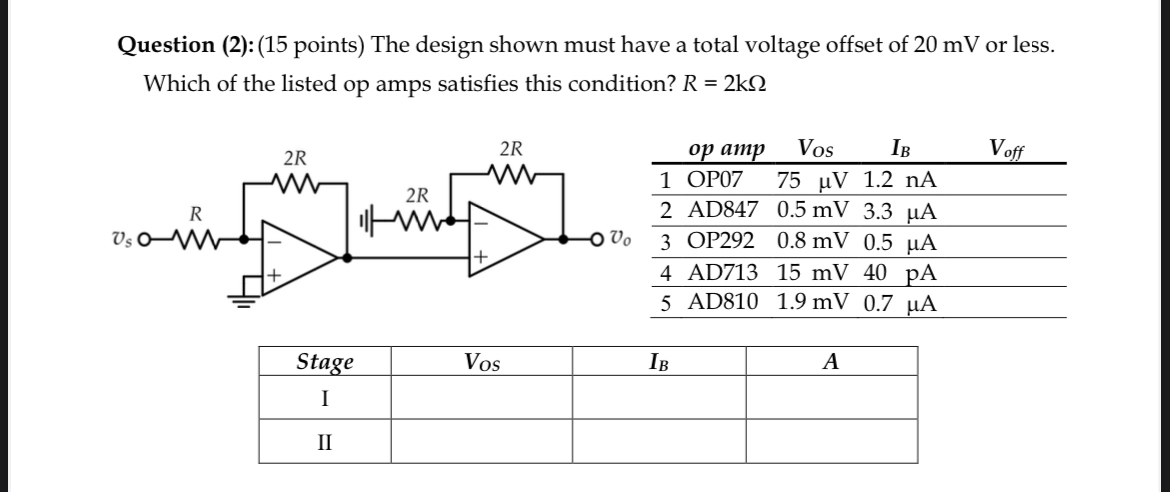

Question: Question ( 2 ) : ( 1 5 points ) The design shown must have a total voltage offset of 2 0 mV or less.

Question (2): (15 points) The design shown must have a total voltage offset of 20 mV or less.
Which of the listed op amps satisfies this condition? R=2k
\table[[,op amp,VOS,IB,Voff,],[1,OP07,75,V,1.2 nA,],[2,AD847,0.5 mV,3.3,A,],[3,OP292,0.8 mV,0.5,A,],[4,AD713,15 mV,40,pA,],[5,AD810,1.9 mV,0.7,A,]]
\table[[Stage,VOS,IB,A
Question ( 2 ) : ( 1 5 points ) The design shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!
