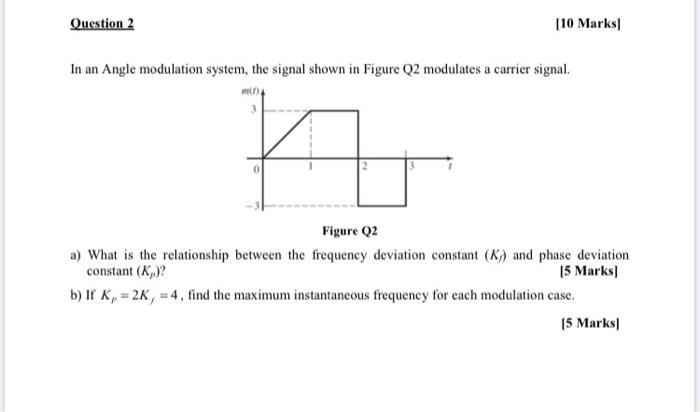

Question: Question 2 110 Marksi In an Angle modulation system, the signal shown in Figure Q2 modulates a carrier signal Figure Q2 a) What is the

Question 2 110 Marksi In an Angle modulation system, the signal shown in Figure Q2 modulates a carrier signal Figure Q2 a) What is the relationship between the frequency deviation constant (K) and phase deviation constant (Kn)? 15 Marks b) If K, = 2K, = 4, find the maximum instantaneous frequency for each modulation case. 15 Marks
