Question: Question 2 : ( 2 0 marks ) For the concrete dam section with two cutoff walls shown in Figure 2 , construct the flow

Question 2:
(20 marks)

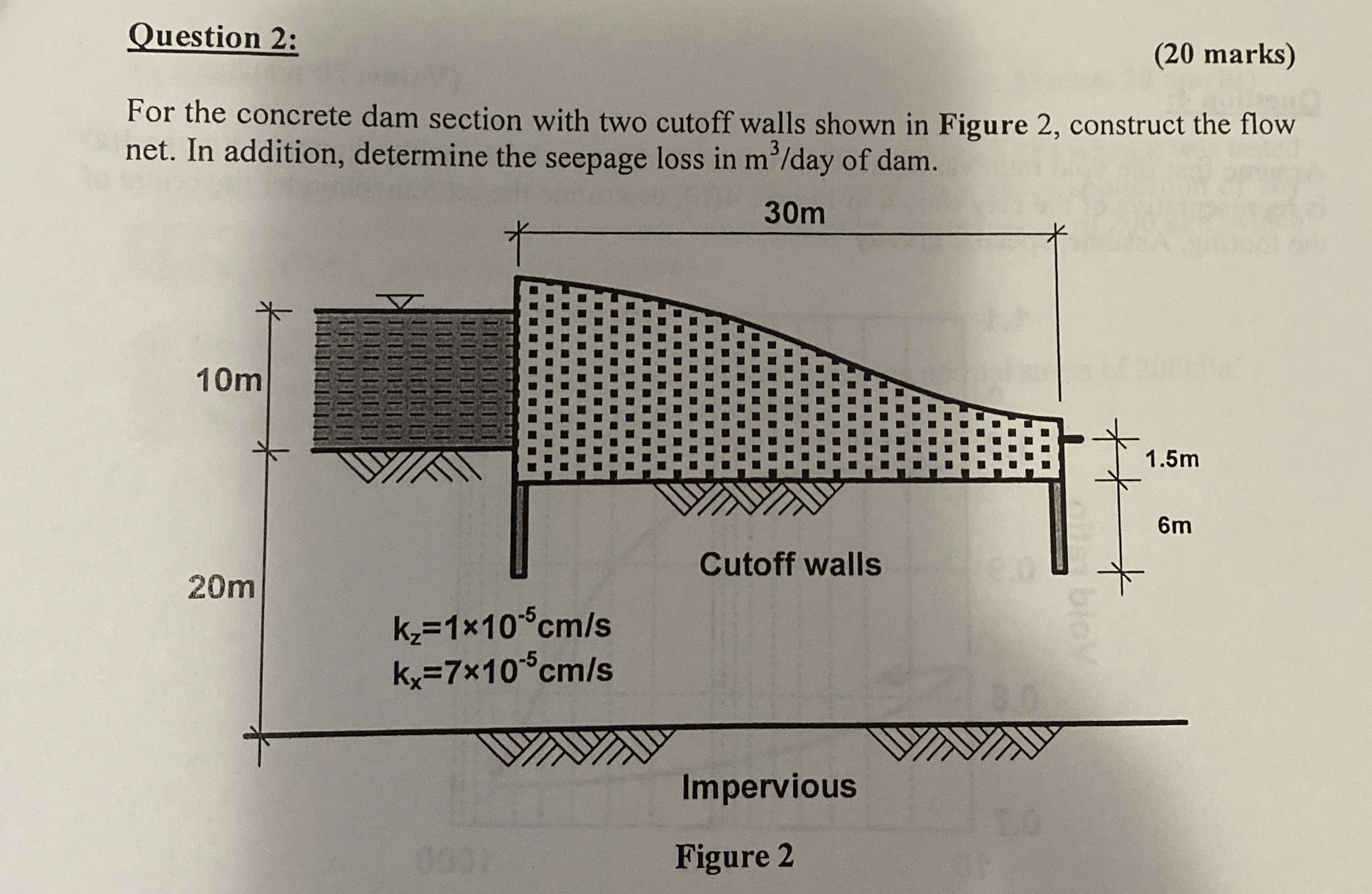

For the concrete dam section with two cutoff walls shown in Figure 2, construct the flow net. In addition, determine the seepage loss in m3? day of dam.
Impervious
Figure 2
Question 2 : ( 2 0 marks ) For the concrete dam

Step by Step Solution

There are 3 Steps involved in it
