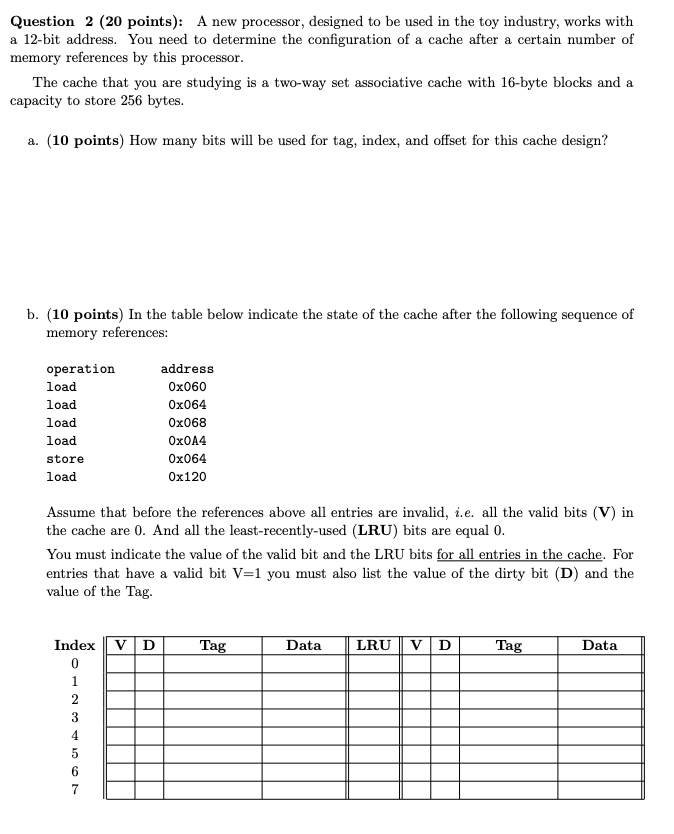

Question $2(20$ points$)$: A new processor, designed to be used in the toy industry, works with

a $12-$bit address. You need to determine the configuration of a cache after a certain number of

memory references by this processor.

The cache that you are studying is a two$-$way set associative cache with $16-$byte blocks and a

capacity to store $256$ bytes.

a$.(10$ points$)$ How many bits will be used for tag, index, and offset for this cache design?

b$.(10$ points$)$ In the table below indicate the state of the cache after the following sequence of

memory references:

Assume that before the references above all entries are invalid, i$.$e$.$ all the valid bits $($V$)$ in

the cache are $0.$ And all the least$-$recently$-$used $($LRU$)$ bits are equal $0.$

You must indicate the value of the valid bit and the LRU bits for all entries in the cache. For

entries that have a valid bit $V=1$ you must also list the value of the dirty bit $($D$)$ and the

value of the Tag.
