Question: Question # 2 ( 2 0 points ) The beam represented in the figure is subjected to two concentrated loads of 1 0 0 lb

Question #2(20 points)

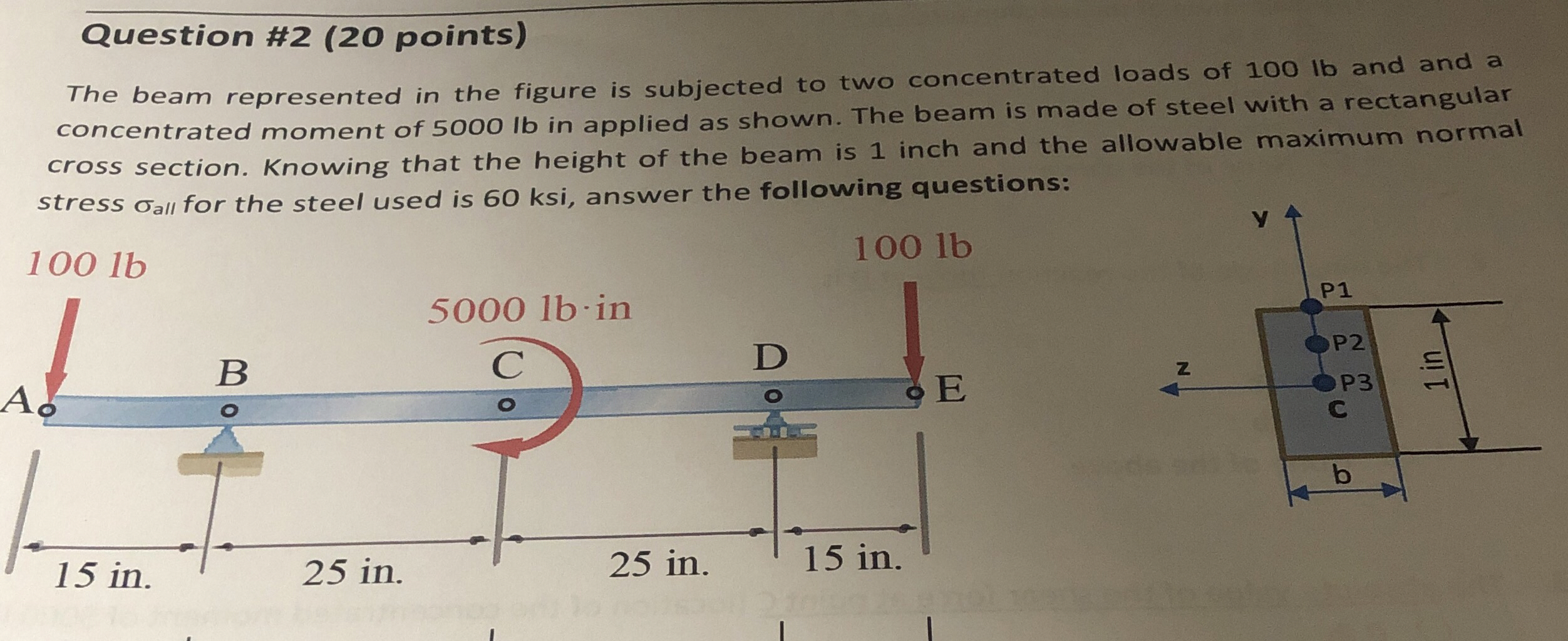

The beam represented in the figure is subjected to two concentrated loads of 100 lb and and a concentrated moment of 5000 lb in applied as shown. The beam is made of steel with a rectangular cross section. Knowing that the height of the beam is 1 inch and the allowable maximum normal stress all for the steel used is 60 ksi. What are the reaction forces at b and d And what are the Shear force and bending moment diagrams
Question # 2 ( 2 0 points ) The beam represented

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
