Question: Question 2 [ 2 5 marks ] Determine the forces in members DE , KE and KL knowing that the loads supported by the Howe

Question 2[25 marks]

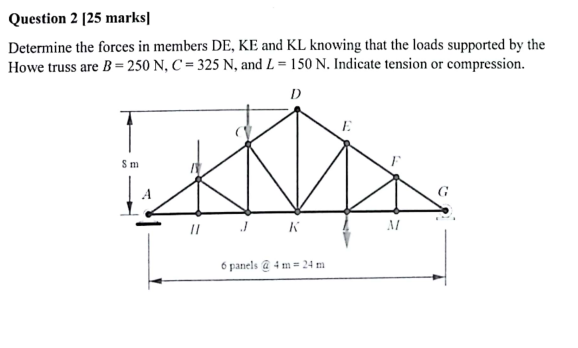

Determine the forces in members DE, KE and KL knowing that the loads supported by the Howe truss are B=250N,C=325N, and L=150N. Indicate tension or compression.
Question 2 [ 2 5 marks ] Determine the forces in

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
