Question: QUESTION 2 [ 2 5 MARKS ] Figure 3 shows a steel truss bridge located at the Southern Pacific Railroad in California. The truss is

QUESTION 2[25 MARKS]

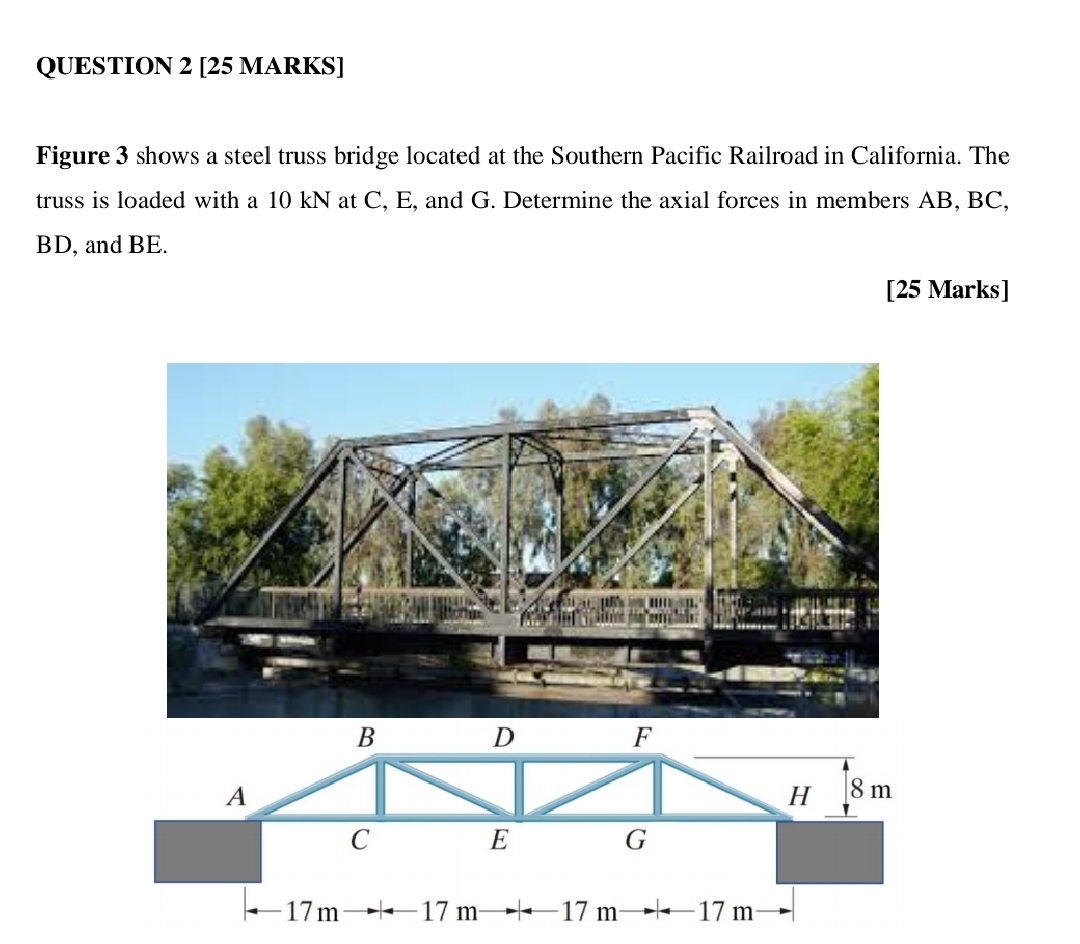

Figure 3 shows a steel truss bridge located at the Southern Pacific Railroad in California. The truss is loaded with a 10 kN at C,E, and G . Determine the axial forces in members AB,BC,BD, and BE.
[25 Marks]
QUESTION 2 [ 2 5 MARKS ] Figure 3 shows a steel

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
