Question: Question 2 ( 2 6 ) Determine the force in members ( mathbf { D C } , mathbf { H C

Question 2(26)
Determine the force in members \(\mathbf{D C},\mathbf{H C}\), and HI of the truss and state if the members are in tension or compression.
a. Draw free body diagram and calculate all the reactions force. (4+6 points)
b. Determine the member forces using either section or joint method. (16 points)

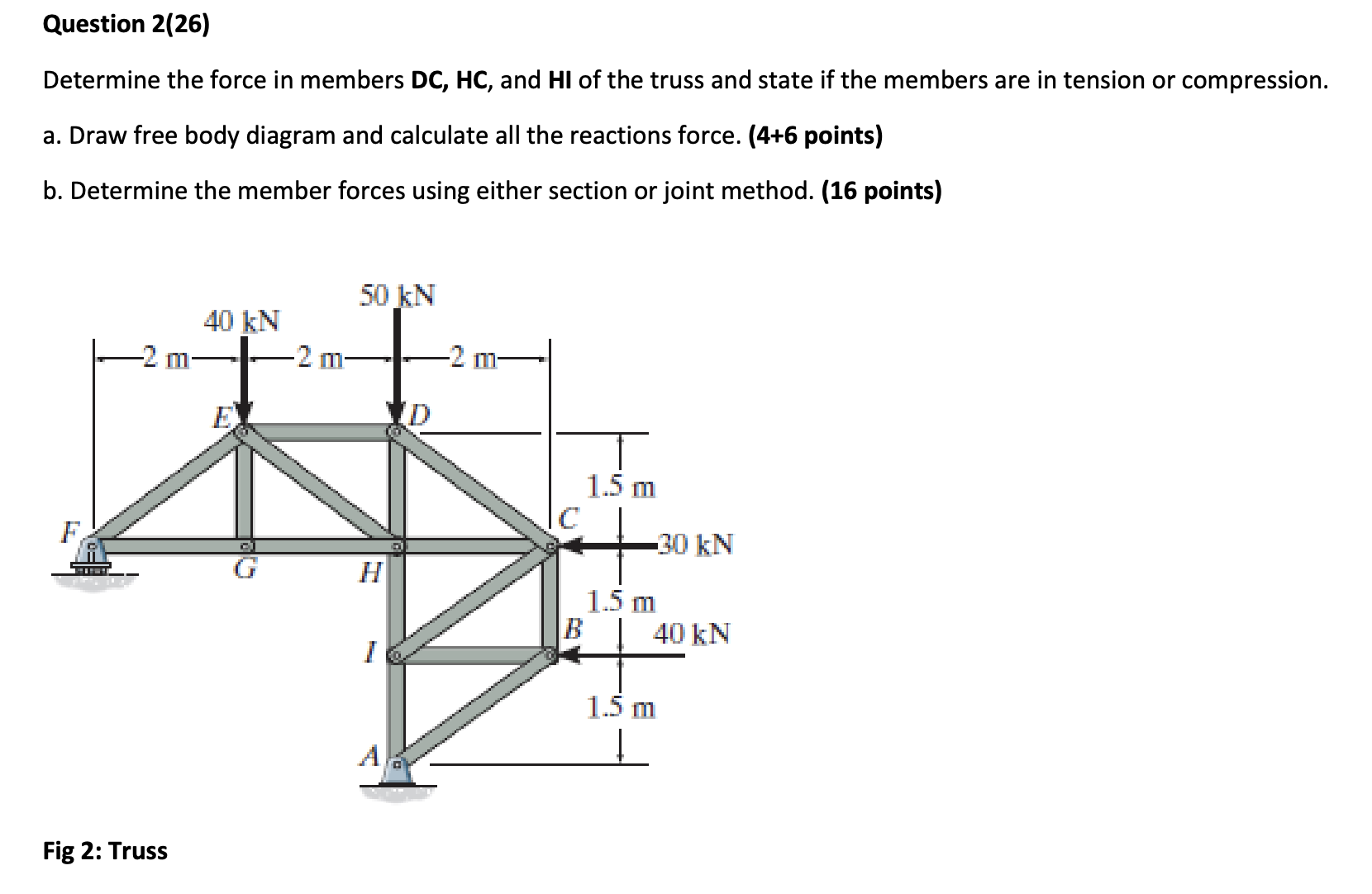

Fig 2: Truss
Question 2 ( 2 6 ) Determine the force in members

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
