Question: Question 2 2 The simplified expression for the Boolean function defined by the following Kmap is z ' + x y z x z '

Question 22

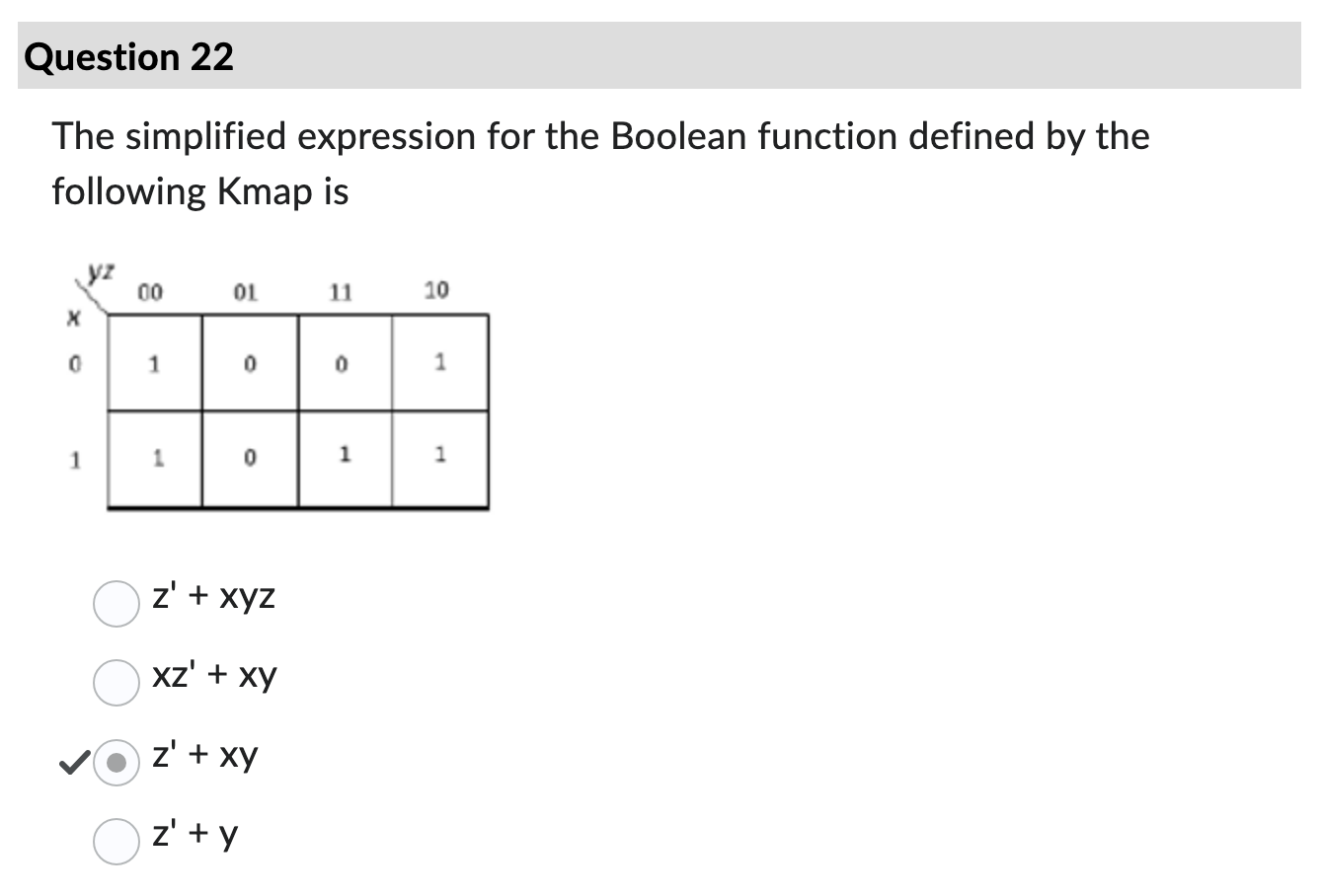

The simplified expression for the Boolean function defined by the
following Kmap is
z'+xyz
xz'+xy
z'+xy
explain why z'+ xy is correct
Question 22 The simplified expression for the Boolean function defined by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
