Question 2(3 points)

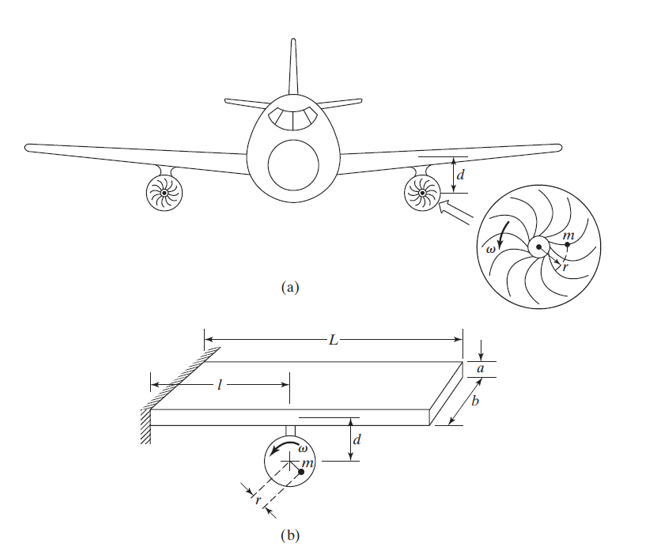

An aircraft engine has a rotating unbalanced mass 0.10 kg at radius 0.19 m. If the wing can be modelled as a cantilever beam of uniform cross section a x b, as shown in the figure, determine the maximum deflection of the engine at a speed of 3000 rpm. Assume damping and the effect of the wing between the engine and the free end to be negligible. Give your answer in mm. Take l =5 m, a =0.01 m, b =0.5 m and the density and elastic modulus of the wing material as =2700 kg/m3 and E =72.4 GPa. Work to 3 decimal places and do not include the units when submitting the answer. If your answer is a negative, insert it with the negative sign.
Question 2 ( 3 points ) An aircraft engine has a
