Question: QUESTION 2: (4 pts) A gear assembly as shown below calls for a tolerance o the dimension of the Lgap . Assume the gear

QUESTION 2: (4 pts) A gear assembly as shown below calls

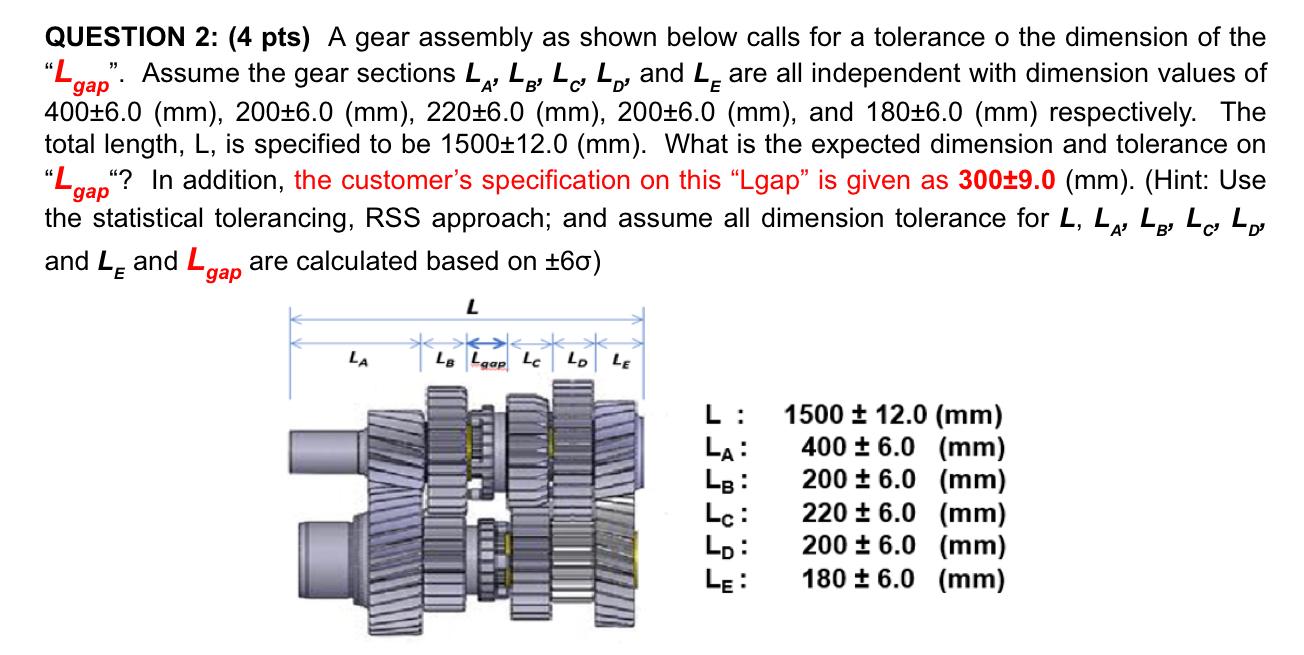

QUESTION 2: (4 pts) A gear assembly as shown below calls for a tolerance o the dimension of the " Lgap ". Assume the gear sections LA,LB,LC,LD, and LE are all independent with dimension values of total length, L, is specified to be 150012.0(mm). What is the expected dimension and tolerance on " Lgap "? In addition, the customer's specification on this "Lgap" is given as 3009.0 (mm). (Hint: Use the statistical tolerancing, RSS approach; and assume all dimension tolerance for L,LA,LB,LC,LD and LE and Lgap are calculated based on 6 )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
