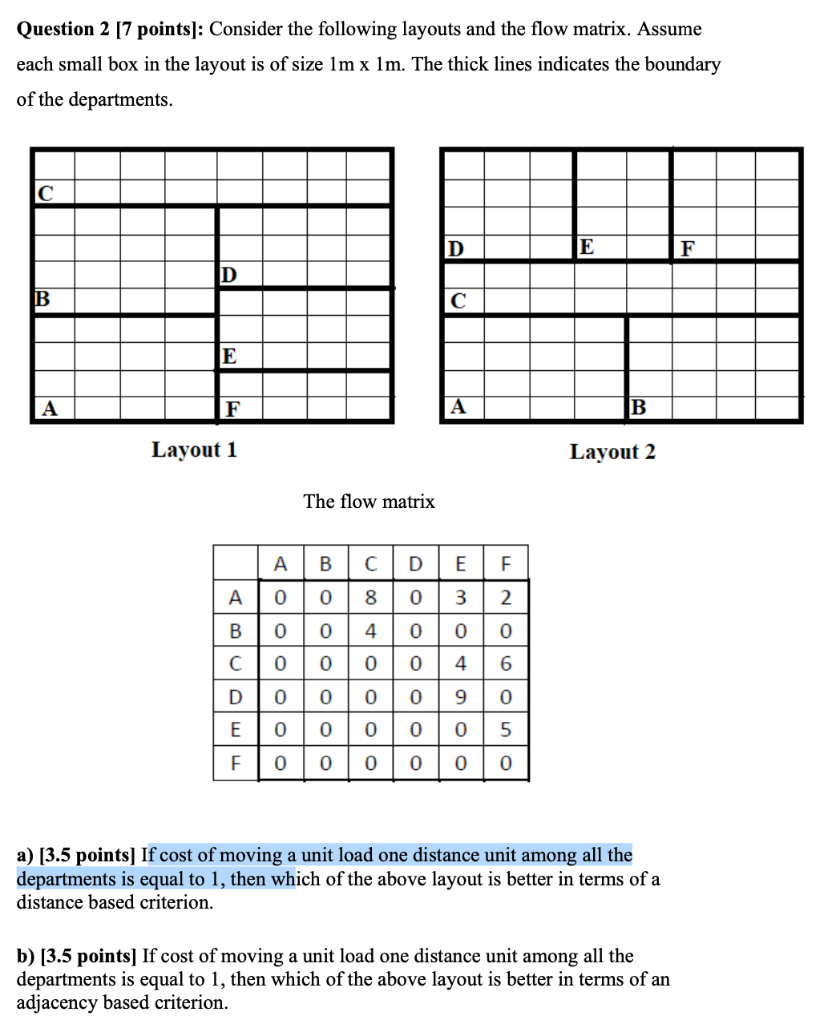

Question 2 [7 points]: Consider the following layouts and the flow matrix. Assume each small box in the layout is of size 1m1m. The thick lines indicates the boundary of the departments. Layout 1 Layout 2 The flow matrix a) [3.5 points] If cost of moving a unit load one distance unit among all the departments is equal to 1, then which of the above layout is better in terms of a distance based criterion. b) [3.5 points] If cost of moving a unit load one distance unit among all the departments is equal to 1, then which of the above layout is better in terms of an adjacency based criterion. Question 2 [7 points]: Consider the following layouts and the flow matrix. Assume each small box in the layout is of size 1m1m. The thick lines indicates the boundary of the departments. Layout 1 Layout 2 The flow matrix a) [3.5 points] If cost of moving a unit load one distance unit among all the departments is equal to 1, then which of the above layout is better in terms of a distance based criterion. b) [3.5 points] If cost of moving a unit load one distance unit among all the departments is equal to 1, then which of the above layout is better in terms of an adjacency based criterion
