Question: Question 2 A beam with the cross - section shown in the figure carries a bending moment that causes the elastic region to extend 4

Question 2 A beam with the cross-section shown in the figure carries a bending moment that causes the elastic region to extend 40 mm from the neutral axis. Determine the residual stress distribution after the bending moment has been removed. Use \(\sigma_{Y}=280\mathrm{MPa}\).

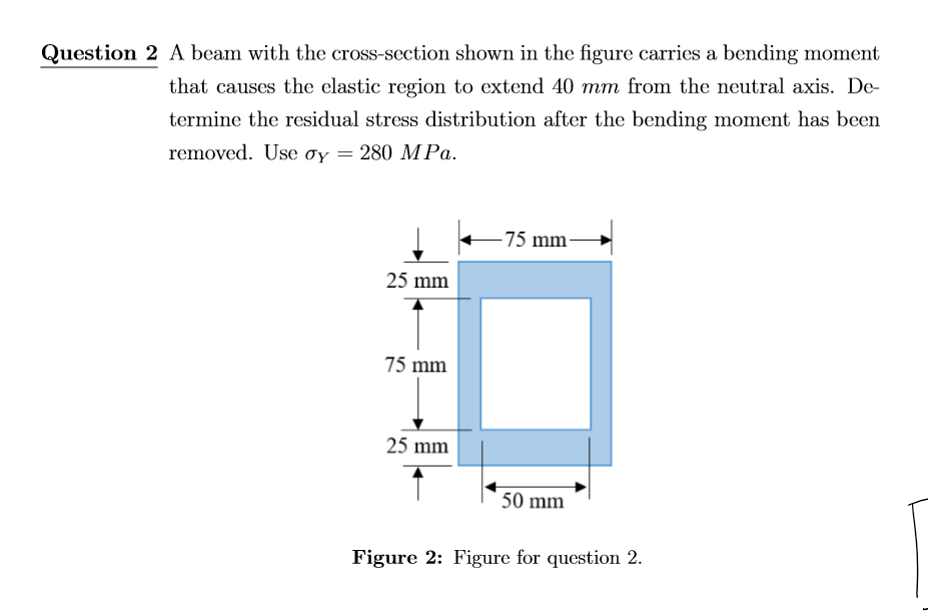

Figure 2: Figure for question 2.
Question 2 A beam with the cross - section shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
