Question $2$

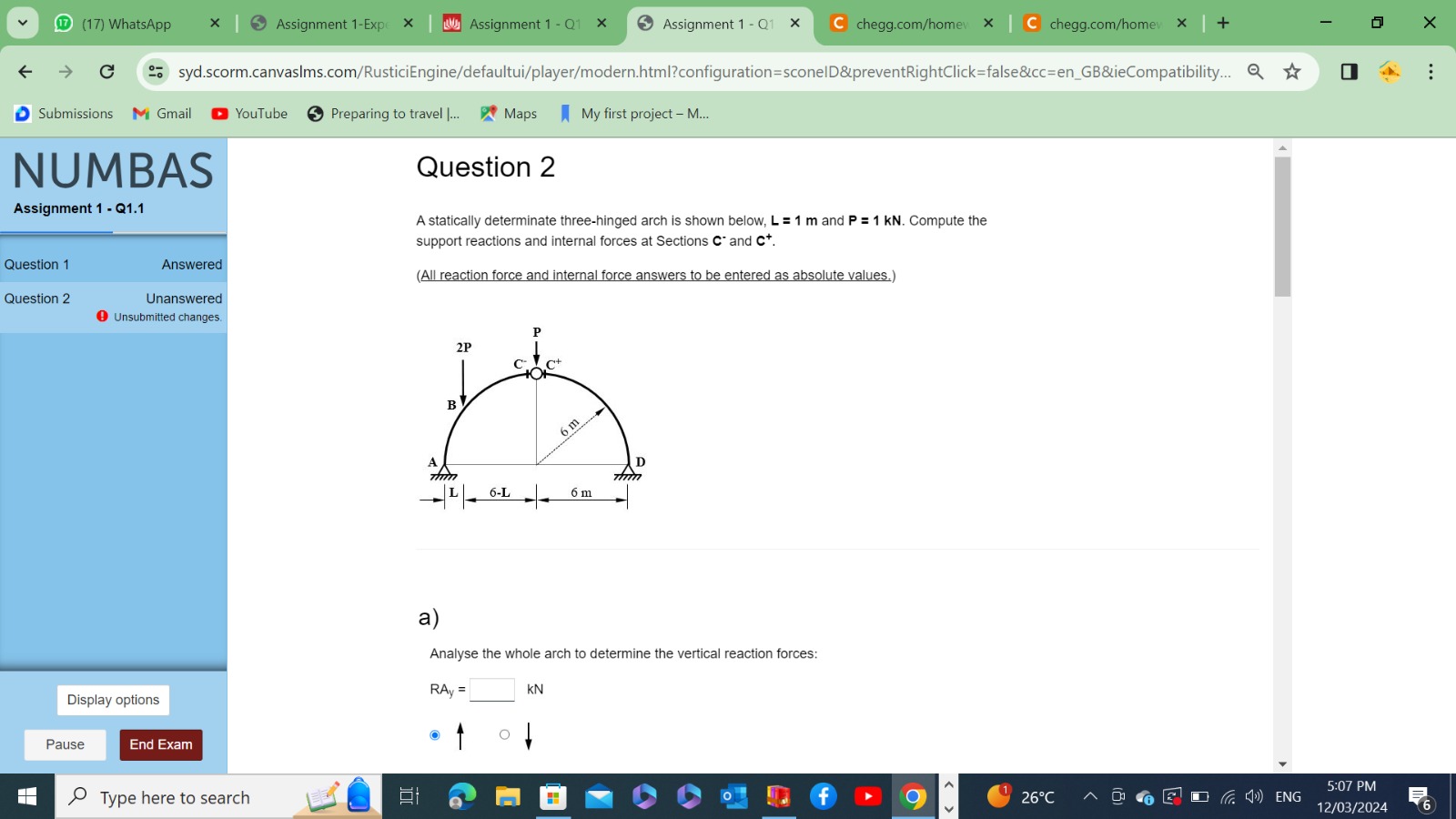

A statically determinate three$-$hinged arch is shown below, $L=1m$ and $P=1kN.$ Compute the

support reactions and internal forces at Sections $C^{**}$ and $C^{+}.$

$($All reaction force and internal force answers to be entered as absolute values.$)$

a$)$

Analyse the whole arch to determine the vertical reaction forces:

$R{A}_y=,kN$

$R{A}_y=,kN$
