Question: QUESTION 2 . For the truss structure below, which statement in the following is correct? Member BD is a zero - force member. Member CD

QUESTION 2.

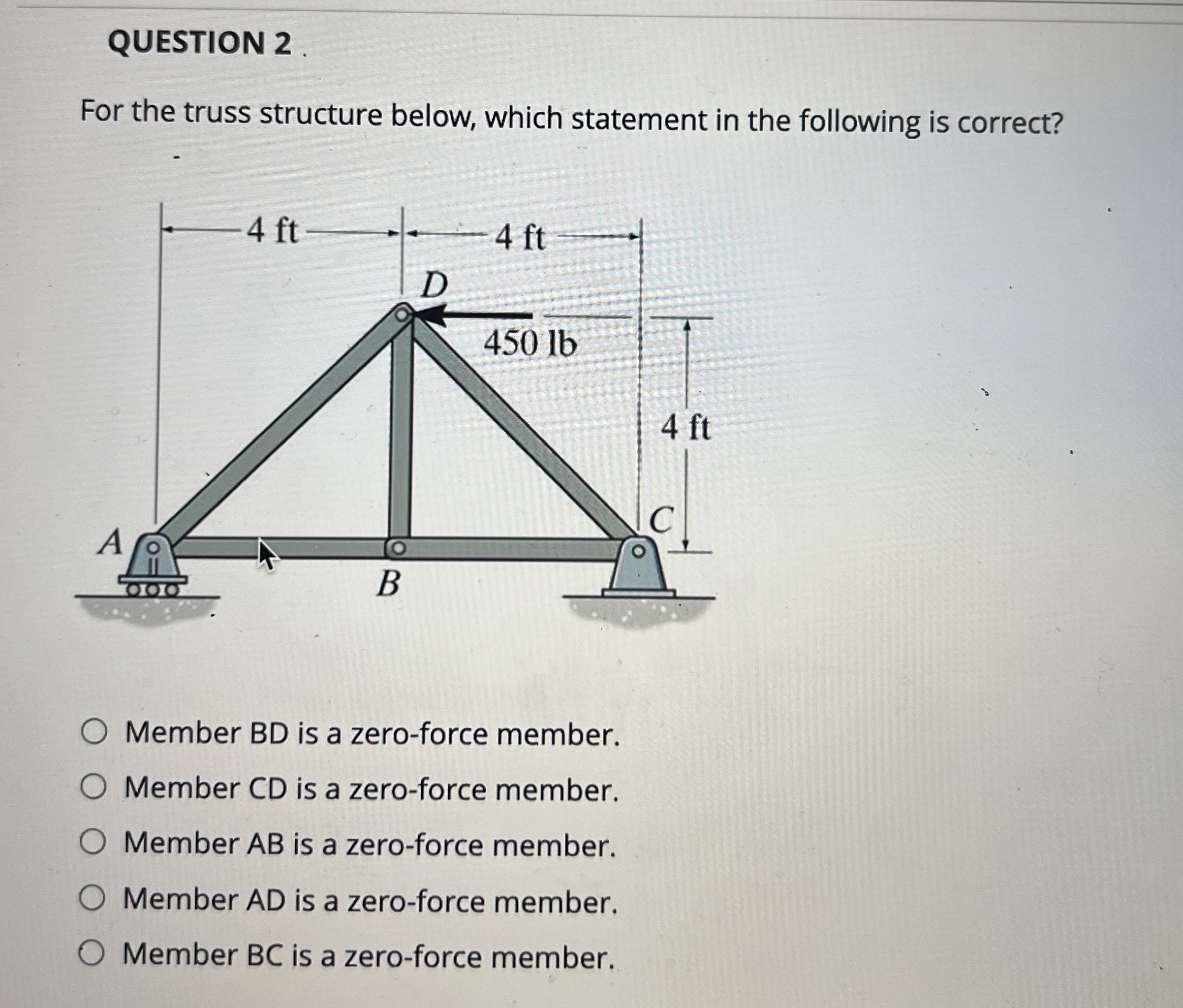

For the truss structure below, which statement in the following is correct?
Member BD is a zero-force member.
Member CD is a zero-force member.
Member AB is a zero-force member.
Member AD is a zero-force member.
Member BC is a zero-force member.
QUESTION 2 . For the truss structure below, which

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
