Question: QUESTION 2 Here, you will complete a DFA that accepts the regular expression (ab+ba)(a+b)* The DFA will have 5 states: S (start state), 1, 2,

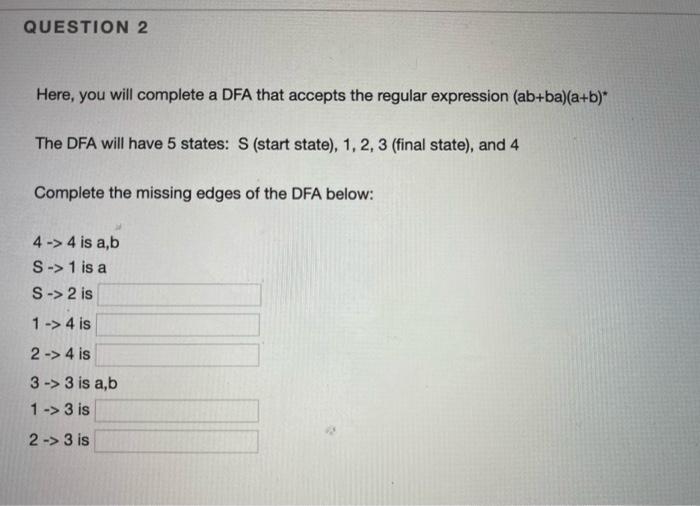

QUESTION 2 Here, you will complete a DFA that accepts the regular expression (ab+ba)(a+b)* The DFA will have 5 states: S (start state), 1, 2, 3 (final state), and 4 Complete the missing edges of the DFA below: 4 -> 4 is a,b S-> 1 is a S-> 2 is 1 -> 4 is 2 -> 4 is 3 -> 3 is a,b 1 -> 3 is 2 -> 3 is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

QUESTION 1 Goal is to design a DFA to accept the regular expression: (a+ba)* Design a DFA that has three states: S (start state and final state), state 1, state 2 Complete the DFA by filling up the...

QUESTION 7 2 Goal is to design an NFA to accept the regular expression: aa*+ a*b Design an NFA that has three states State S (start state), state 1, and state 2 (final state) Complete the NFA by...

Here, you will complete a NFA that accepts the regular expression (a+ab)"(b+ba)" The NFA will have 4 states: S (start state), 1 (final state), 2, and 3 Complete the missing edges of the NFA below:...

Here, you will complete a NFA that accepts the regular expression a(a+ab)ba The NFA will have 4 states: S (start state), 1, 2, and 3 (final state) Complete the edges of the NFA below: S1 is 11 is 12...

1)Consider a water bottle vending machine as a finitestate automaton. This machine is designed to accept coins of Rs. 2 and 5 only. It dispenses a single water bottle as soon as the amount entered is...

Here, you will complete a NFA that accepts the regular expression (atab)"(bba) The NFA will have 4 states. S (start state) 1 (tinal state). 2. and 3 Complete the missing edges of the NFA below S-18A...

Make sure It's Java :) 2.2 What you will write In this assignment you need to write the DFA Simulator that can run a DFA against an input string. Given a DFA and an input string, the simulator will...

Here is the DFA.java code /** * DFA format: alphabet states start state final state(s) transition_1 transition_2 ... transition_n Example DFA for RE (a|b)(a|b|0|1)* The diagram is a,b a,b,0,1...

/******Given DFA.java code******/ /** * DFA format: alphabet states start state final state(s) transition_1 transition_2 ... transition_n Example DFA for RE (a|b)(a|b|0|1)* The diagram is a,b a,b,0,1...

In this assignment you need to write the DFA Simulator that can run a DFA against an input string. Given a DFA and an input string, the simulator will return yes if the DFA accepts the string, return...
