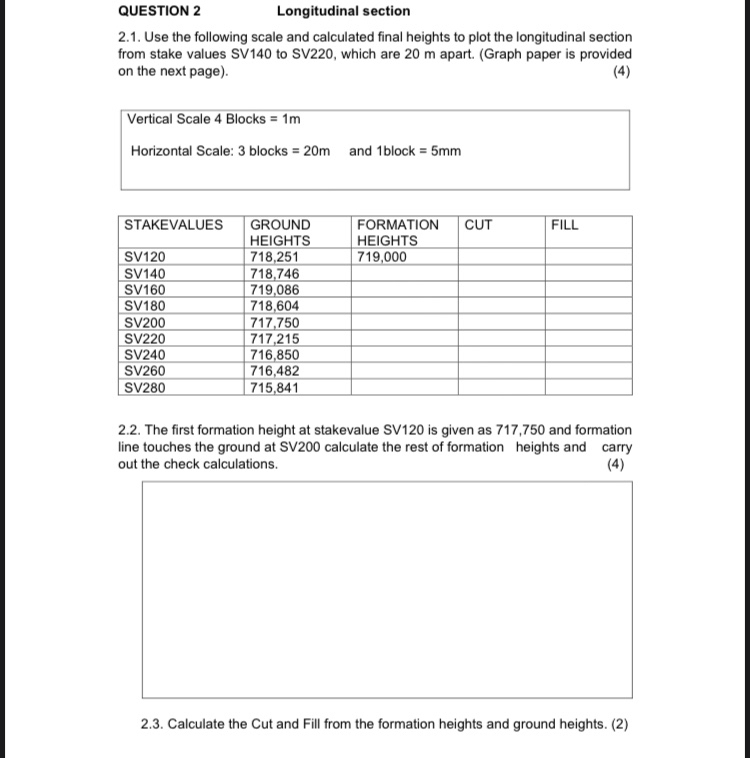

QUESTION $2$

Longitudinal section

$2\mathrm{.}1.$ Use the following scale and calculated final heights to plot the longitudinal section from stake values SV$140$ to SV$220,$ which are $20m$ apart. $($Graph paper is provided on the next page$).$

$(4)$

Vertical Scale $4$ Blocks $=1m$

Horizontal Scale: $3$ blocks $=20m$ and $1$ block $=5mm$

$\backslash$table$[[$STAKEVALUES$,\backslash$table$[[$GROUND$],[$HEIGHTS$]],\backslash$table$[[$FORMATION$],[$HEIGHTS$]],$CUT,FILL$],[$SV$120,718,251,719,000,,],[$SV$140,718,746,,,],[$SV$160,719,086,,,],[$SV$180,718,604,,,],[$SV$200,717,750,,,],[$SV$220,717,215,,,],[$SV$240,716,850,,,],[$SV$260,716,482,,,],[$SV$280,715,841,,,]]$

$2\mathrm{.}2.$ The first formation height at stakevalue SV$120$ is given as $717,750$ and formation line touches the ground at SV$200$ calculate the rest of formation heights and carry out the check calculations.

$(4)$

$2\mathrm{.}3.$ Calculate the Cut and Fill from the formation heights and ground heights. $(2)$
