Question: Question 2 - Shear flow Beam ABC is supported by a hinge at A and a roller at B . The cross section is shown.

Question 2- Shear flow

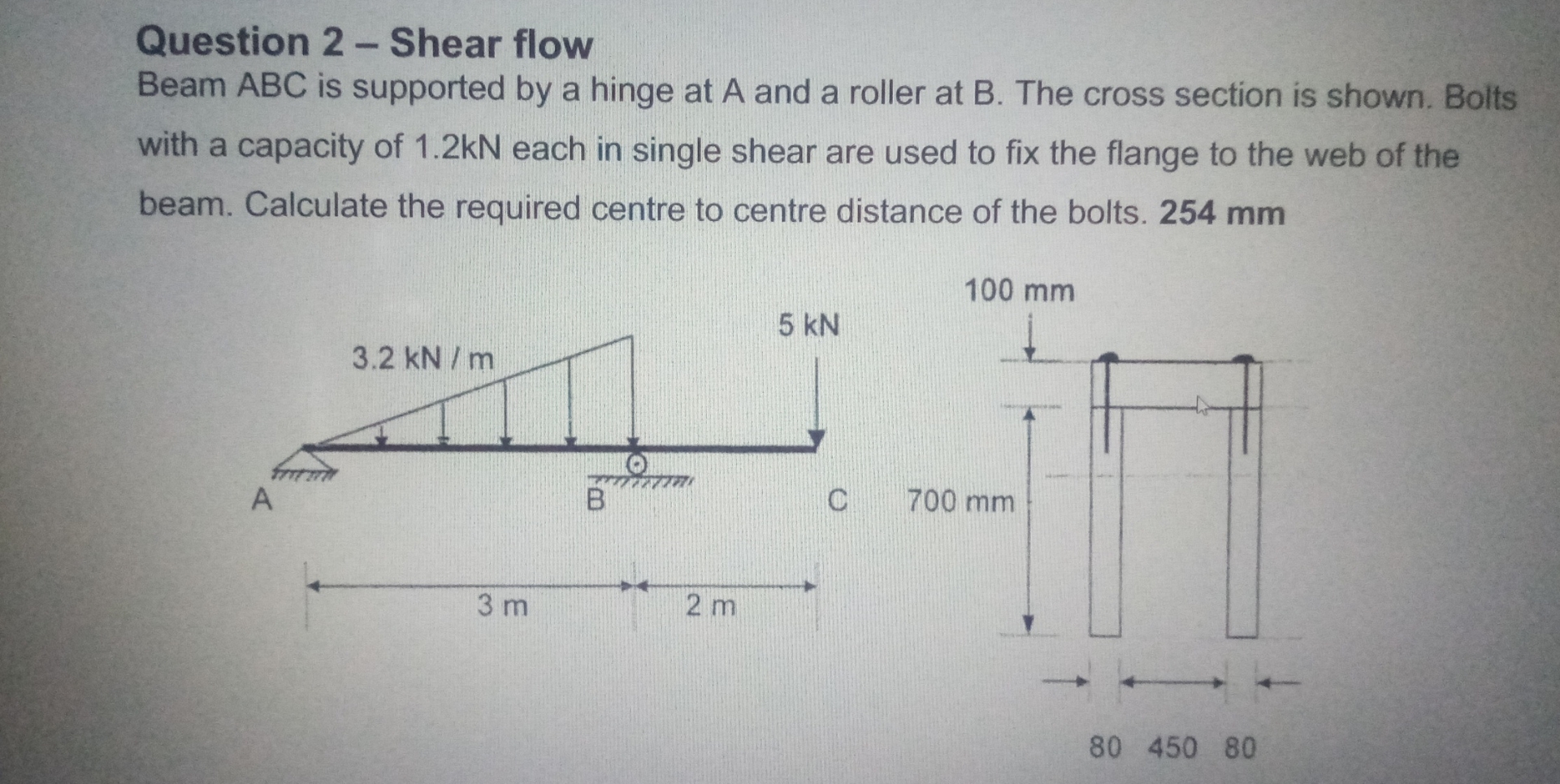

Beam ABC is supported by a hinge at A and a roller at B. The cross section is shown. Bolts with a capacity of 1.2kN each in single shear are used to fix the flange to the web of the beam. Calculate the required centre to centre distance of the bolts. 254mm
Question 2 - Shear flow Beam ABC is supported by

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
