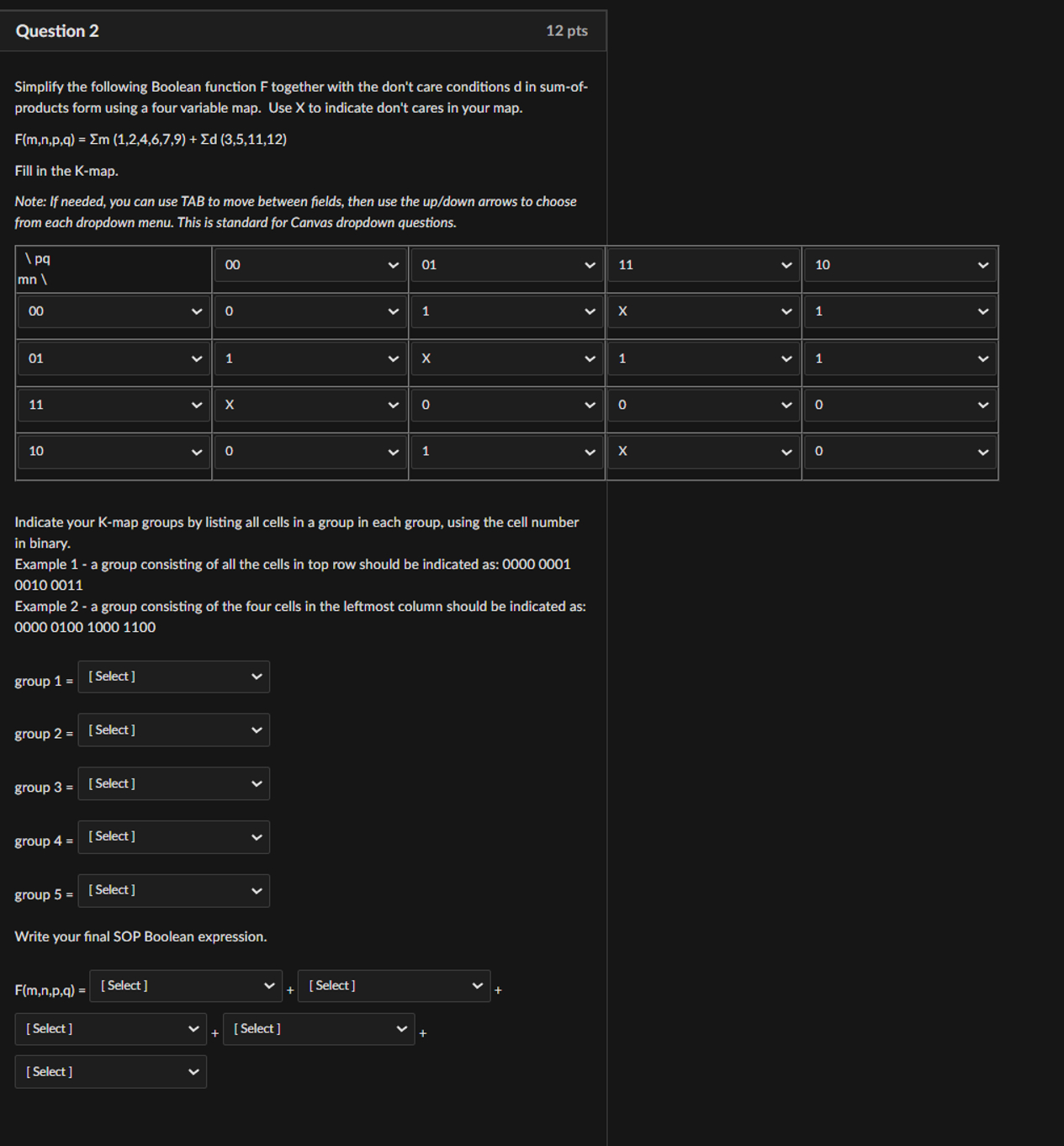

Question $2$

Simplify the following Boolean function F together with the don't care conditions d in sum$-$of$-$

products form using a four variable map. Use X to indicate don't cares in your map.

$F(m,n,p,q)=m(1,2,4,6,7,9)+d(3,5,11,12)$

Fill in the K$-$map.

Note: If needed, you can use TAB to move between fields, then use the up$/$down arrows to choose

from each dropdown menu. This is standard for Canvas dropdown questions.

Indicate your K$-$map groups by listing all cells in a group in each group, using the cell number

in binary.

Example $1-$ a group consisting of all the cells in top row should be indicated as: $00000001$

$00100011$

Example $2-$ a group consisting of the four cells in the leftmost column should be indicated as:

$0000010010001100$

Write your final SOP Boolean expression.

$F(m,n,p,q)=$
