Question: Question 2 Solve the following problem for an element in plane stress subjected to stresses that are shown in figure Q 2 . Determine the

Question 2

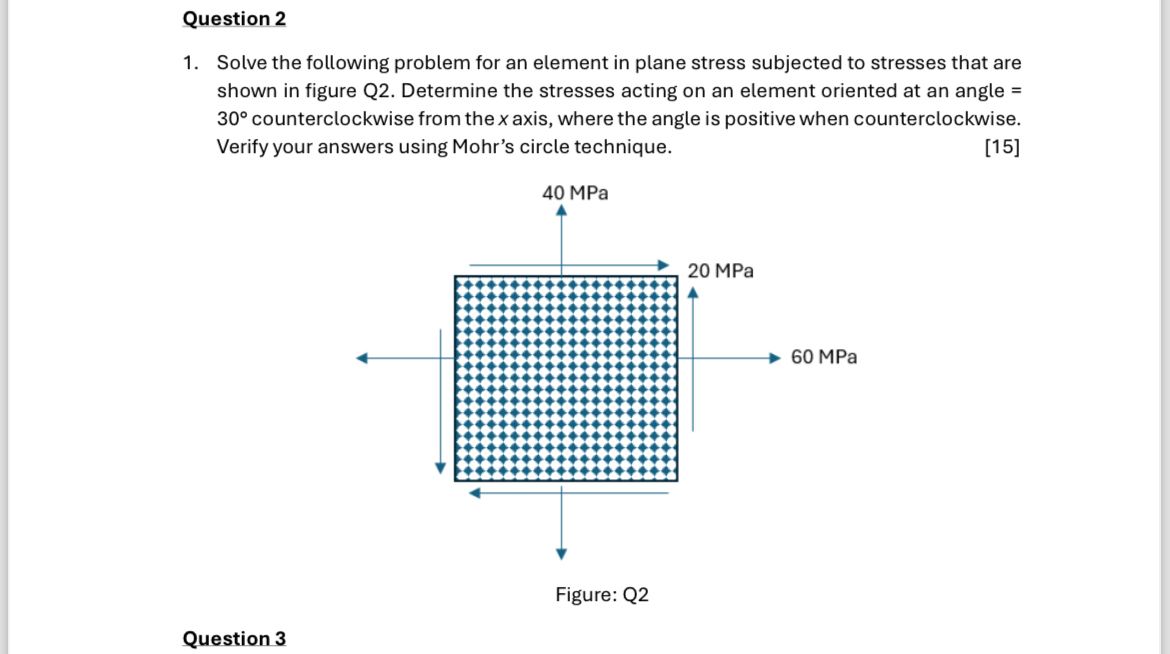

Solve the following problem for an element in plane stress subjected to stresses that are shown in figure Q2. Determine the stresses acting on an element oriented at an angle =30 counterclockwise from the x axis, where the angle is positive when counterclockwise. Verify your answers using Mohr's circle technique.
[15]
Question 3
Question 2 Solve the following problem for an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
