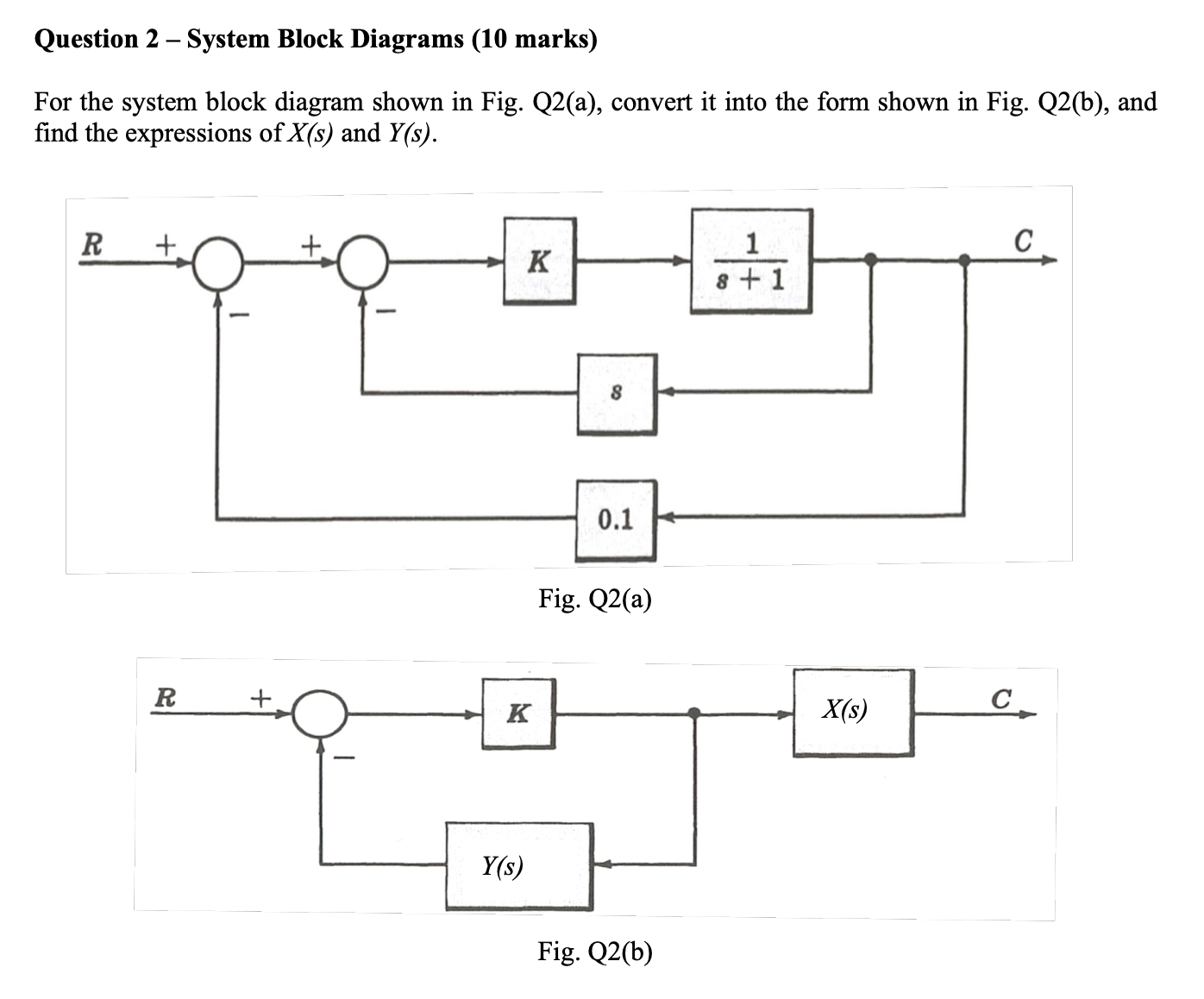

Question $2-$ System Block Diagrams $(10$ marks$)$

For the system block diagram shown in Fig. Q$2($a$),$ convert it into the form shown in Fig. Q$2($b$),$ and find the expressions of $\backslash ($ X$($s$)\backslash )$ and $\backslash ($ Y$($s$)\backslash ).$

Fig. Q$2($a$)$

Fig. Q$2($b$)$
