Question 3.[12 points]

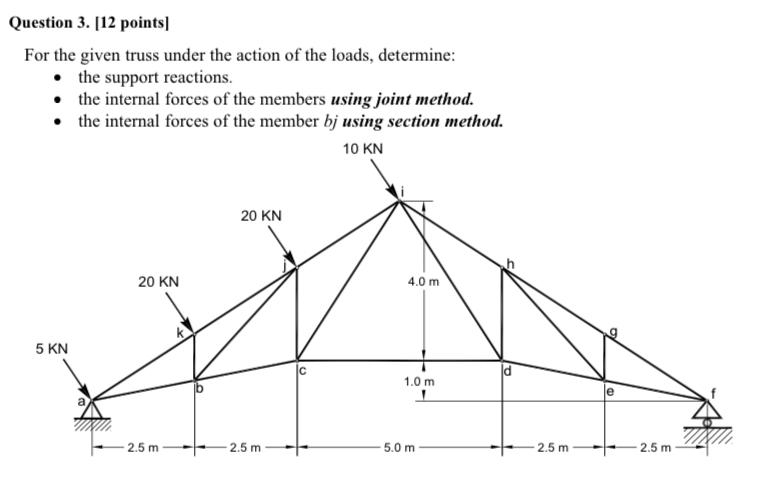

For the given truss under the action of the loads, determine:
the support reactions.
the internal forces of the members using joint method.
the internal forces of the member bj using section method.
Question 3 . [ 1 2 points ] For the given truss

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
