Question: Question 3 ( 1 point ) A 2 0 - kip concentrated load moves through the truss as shown. The maximum force in member CD

Question 3(1 point)

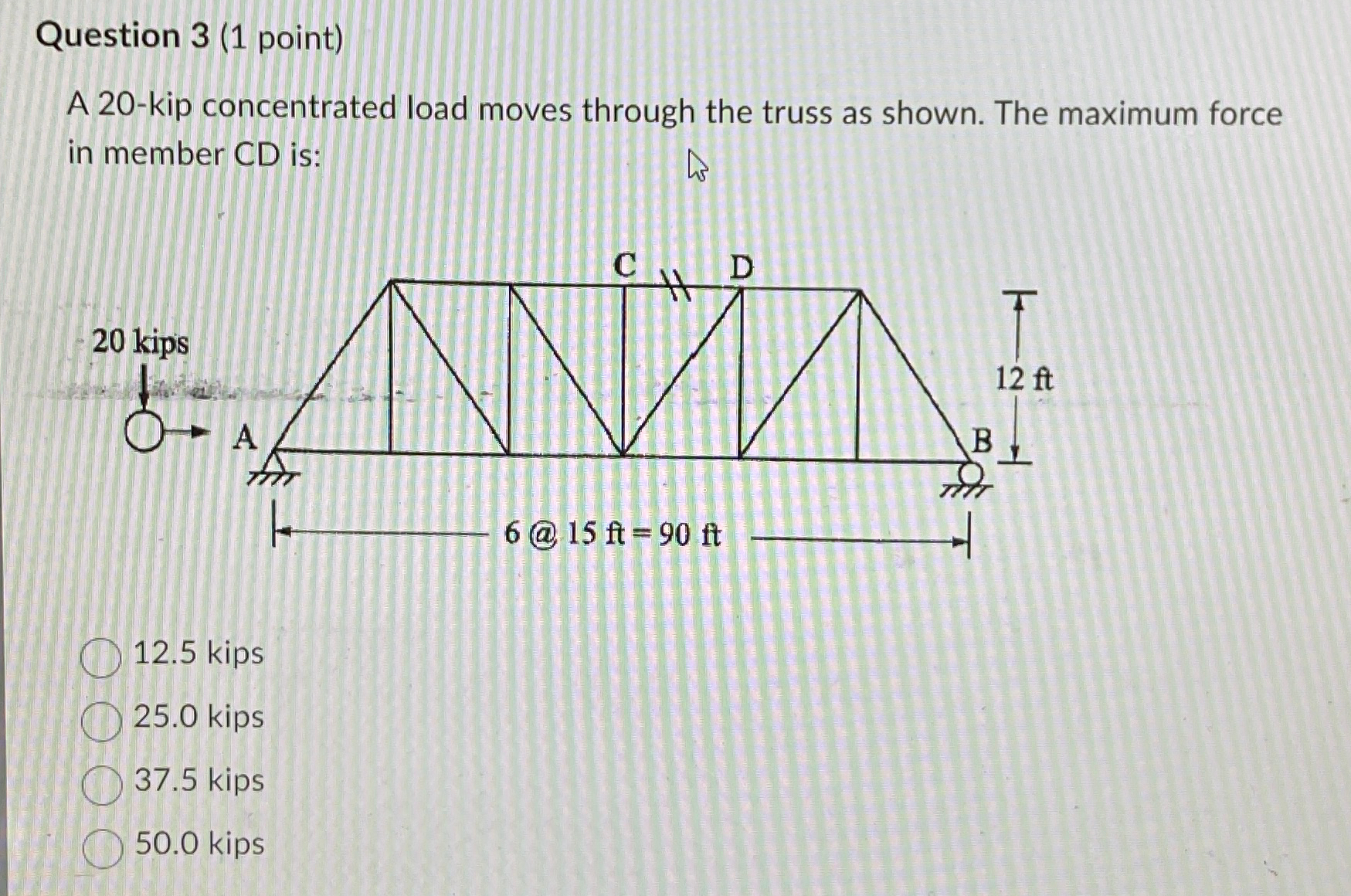

A 20-kip concentrated load moves through the truss as shown. The maximum force in member CD is:
12.5 kips
25.0 kips
37.5 kips
50.0 kips
Question 3 ( 1 point ) A 2 0 - kip concentrated

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
