Question $3$

$20$ marks

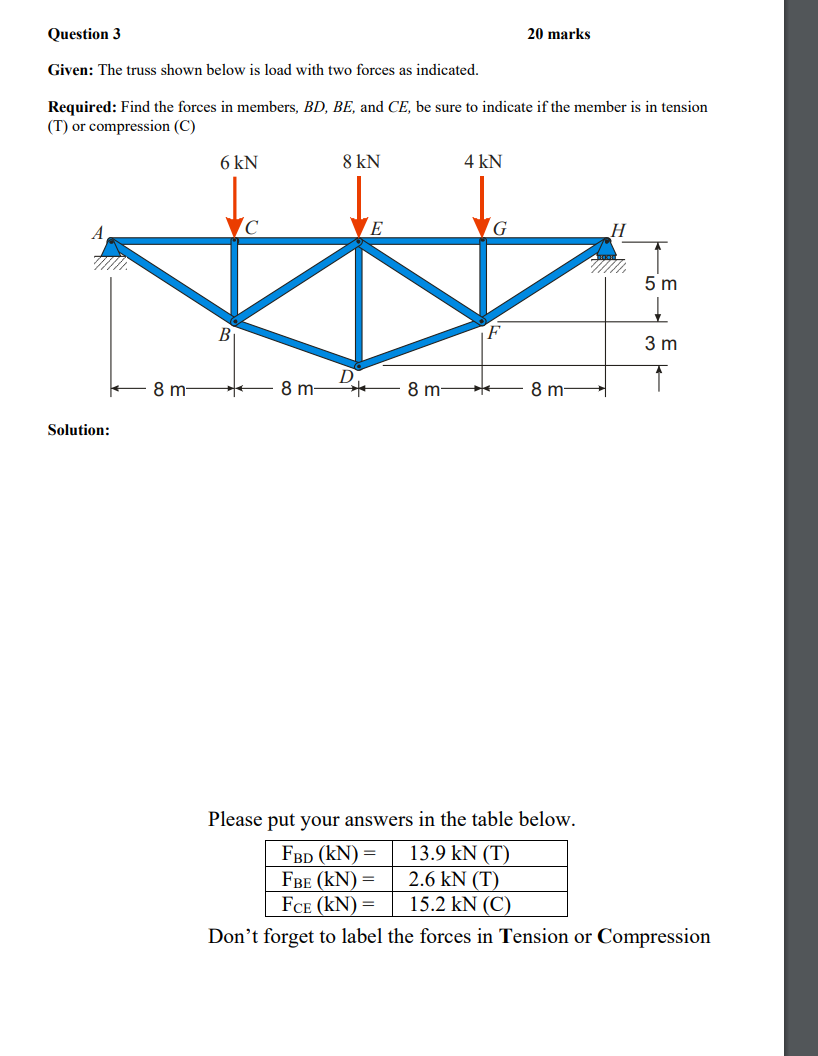

Given: The truss shown below is load with two forces as indicated.

Required: Find the forces in members, $BD,BE,$ and $CE,$ be sure to indicate if the member is in tension

$($T$)$ or compression $($C$)$

Solution:

Please put your answers in the table below.

Don't forget to label the forces in Tension or Compression
