Question 3
20 marks

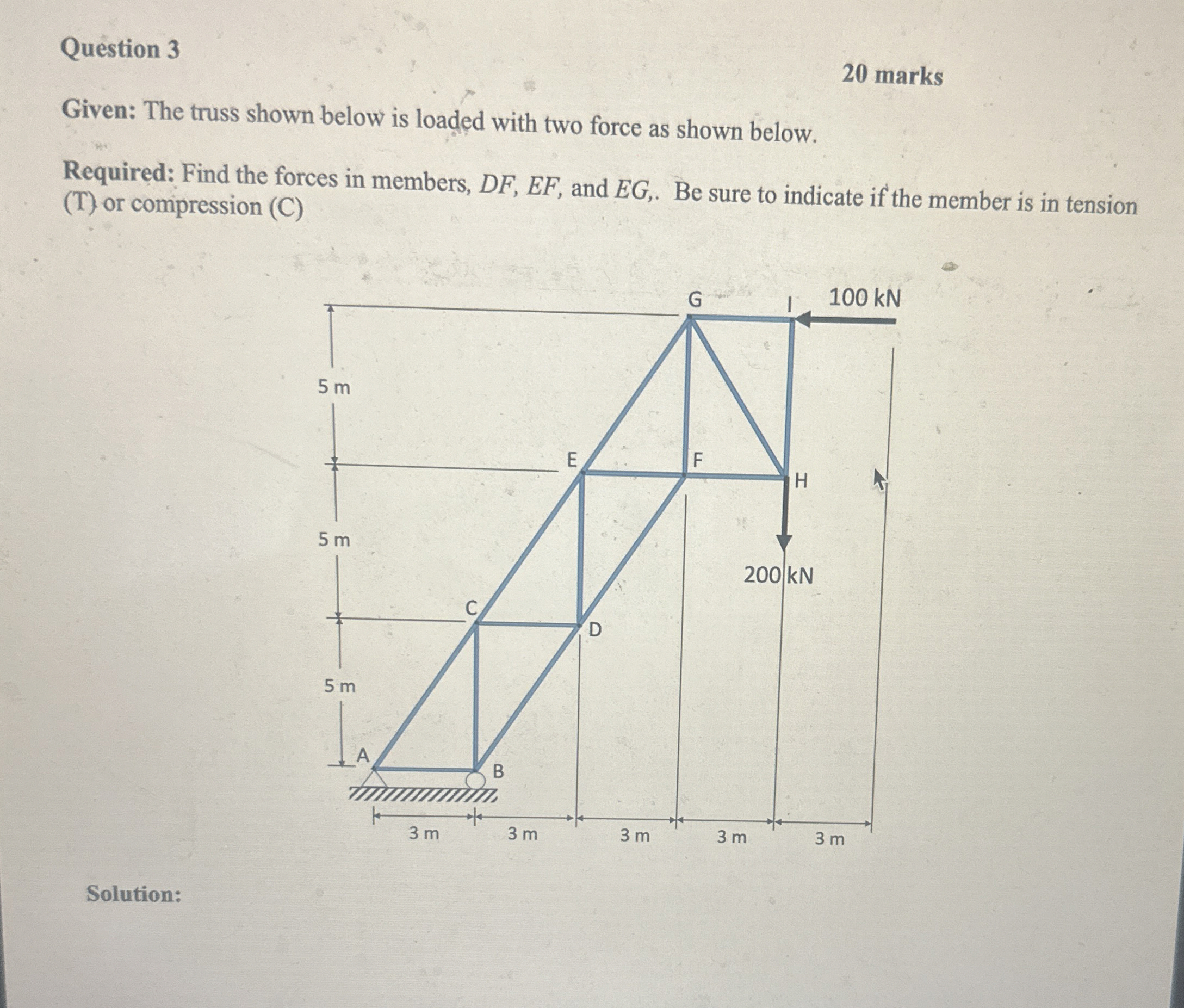

Given: The truss shown below is loaded with two force as shown below.
Required: Find the forces in members, DF,EF, and EG,. Be sure to indicate if the member is in tension (T) or compression (C)
Solution:
Question 3 2 0 marks Given: The truss shown below

Step by Step Solution

There are 3 Steps involved in it
