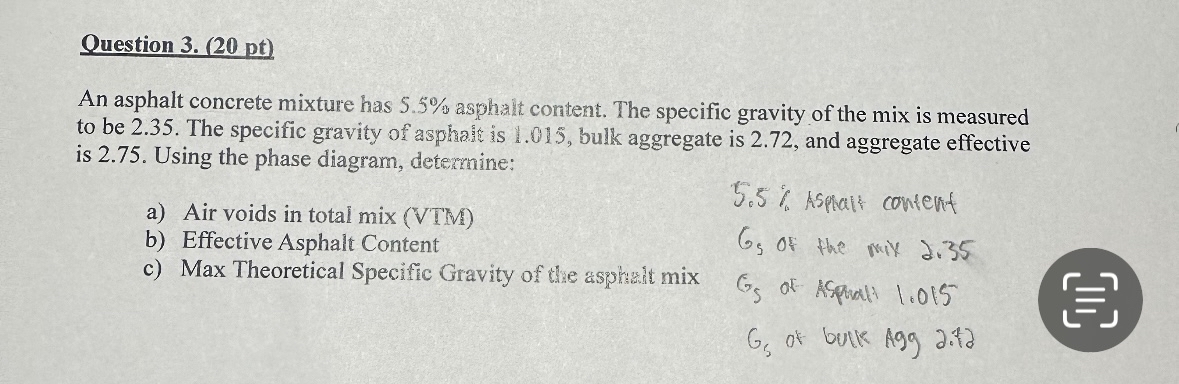

Question $3.(20$ pt$)$

An asphalt concrete mixture has $5\mathrm{.}5\%$ asphalt content. The specific gravity of the mix is measured to be $2\mathrm{.}35.$ The specific gravity of asphale is $1\mathrm{.}015,$ bulk aggregate is $2\mathrm{.}72,$ and aggregate effective is $2\mathrm{.}75.$ Using the phase diagram, determine:

a$)$ Air voids in total mix $($VTM$)$

b$)$ Effective Asphalt Content

c$)$ Max Theoretical Specific Gravity of the asphalt mix

$5\mathrm{.}5\%$ Asplait content

$G_g$ of the mix $2\mathrm{.}35$

$G_5$ of Appralt $1\mathrm{.}015$

$G_5$ of bulk Agg $2\mathrm{.}12$
