Question $3.$

A countershaft carrying two V$-$belt pulleys is shown in the figure. Pulley A receives power from a motor through a belt with the belt tensions shown in Fig$\mathrm{.}1.$ The power is transmitted through the shaft and delivered to the belt on pulley B$.$ Assume the belt tension on the loose side at $B$ is $15$ percent of the tension on the tight side. $($a$)$ Determine the tensions in the belt on pulley $B,$ assuming the shaft is running at a constant speed. $($b$)$ Find the magnitudes of the bearing reaction forces, assuming the bearings act as simple supports. $($c$)$ Draw shearforce and bending$-$moment diagrams for the shaft. If needed, make one set for the horizontal plane and another set for the vertical plane. $($d$)$ At the point of maximum bending moment, determine the bending stress and the torsional shear stress. $($e$)$ At the point of maximum bending moment, determine the principal stresses and the maximum shear stress

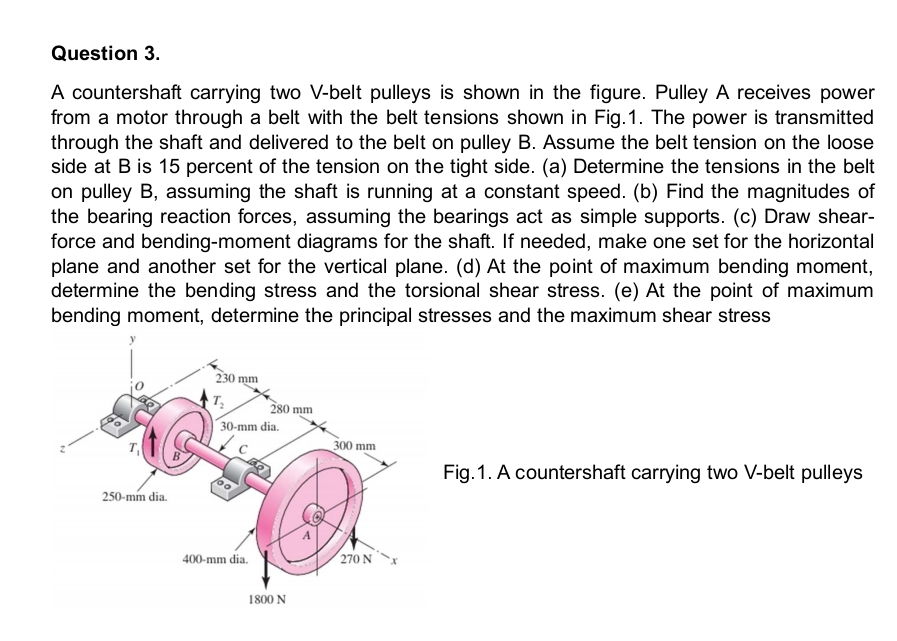

Fig$\mathrm{.}1.$ A countershaft carrying two V$-$belt pulleys
