Question: Question 3 (a) Figure Q3 (a) shows a circuit containing different branches. Calculate the currents, I1, 12, and 13. (6 marks) 14.0 V + 4.0

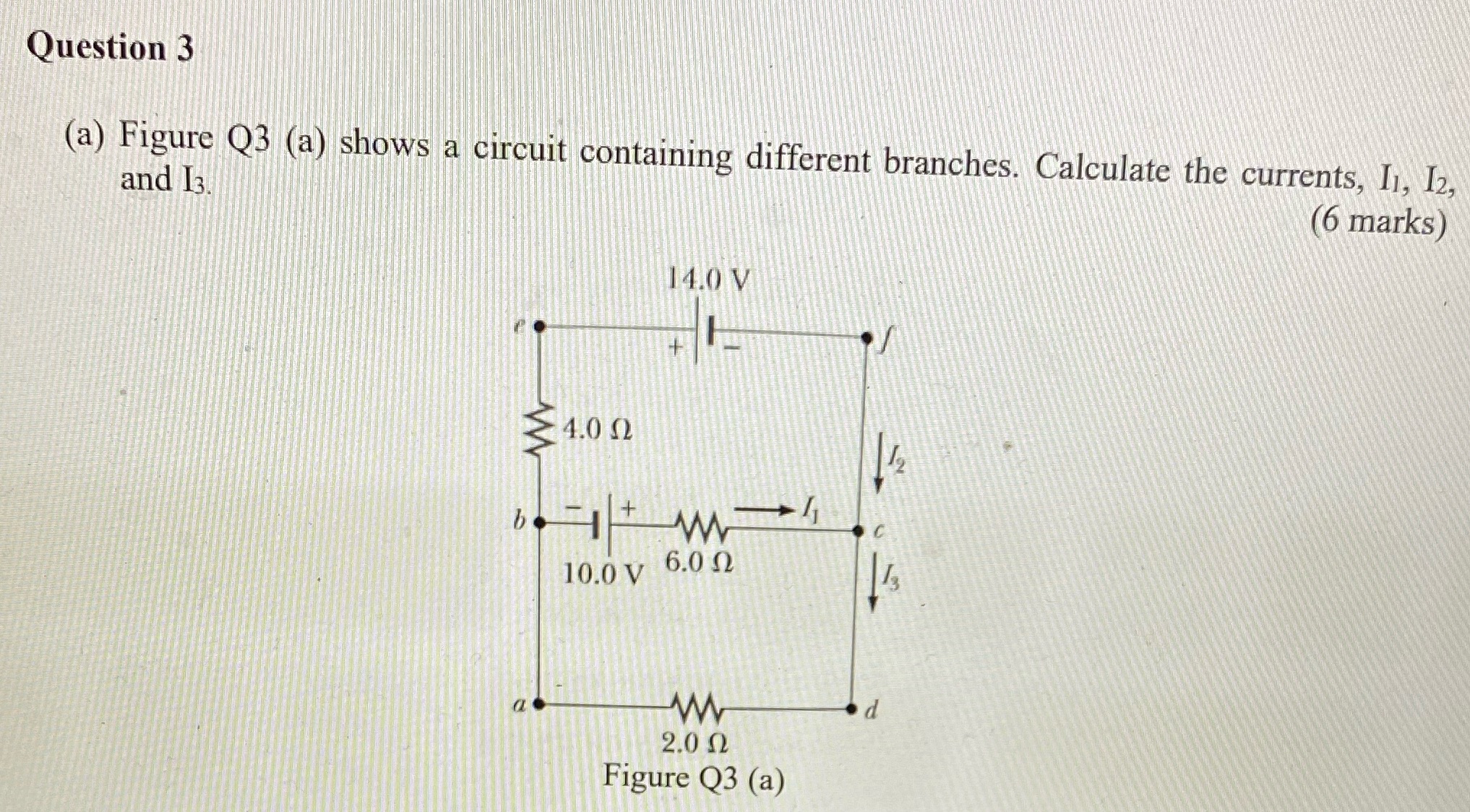

Question 3 (a) Figure Q3 (a) shows a circuit containing different branches. Calculate the currents, I1, 12, and 13. (6 marks) 14.0 V + 4.0 0 C 10.0 v 6.00 d 2.0 0 Figure Q3 (a)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
