Question: Question 3 . Layout ( 2 5 marks ) The activity relationship chart below is obtained from A Manufacturing Company. ( a ) Complete the

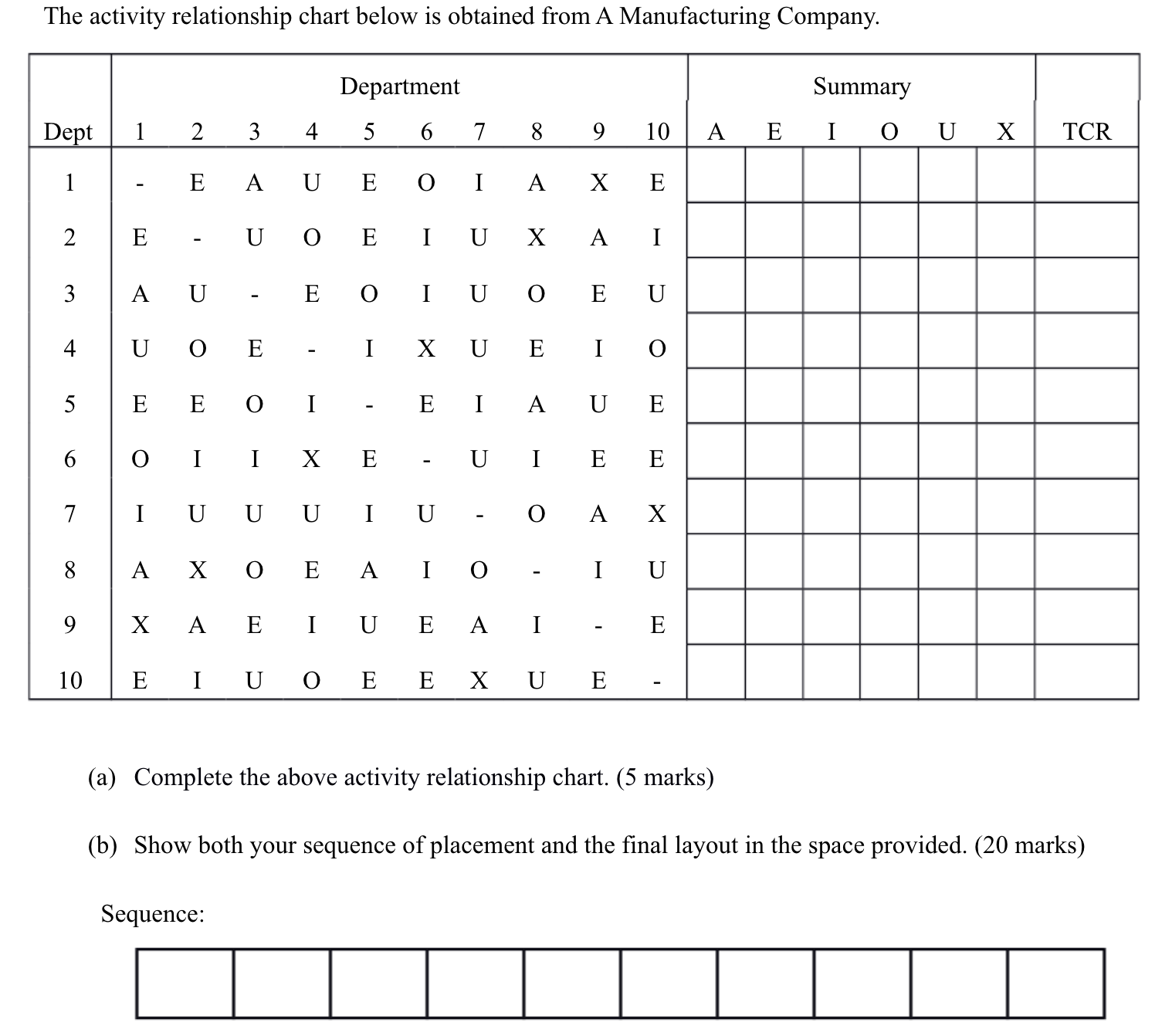

Question 3. Layout (25 marks) The activity relationship chart below is obtained from A Manufacturing Company.
(a) Complete the above activity relationship chart. (5 marks)
(b) Show both your sequence of placement and the final layout in the space provided. (20 marks)
Sequence:
