Question: Question 3 ? Vraag 3 [ 3 0 ] The simply supported beam, shown in Figure 3 , is loaded with a uniform distributed load

Question 3? Vraag 3[30]

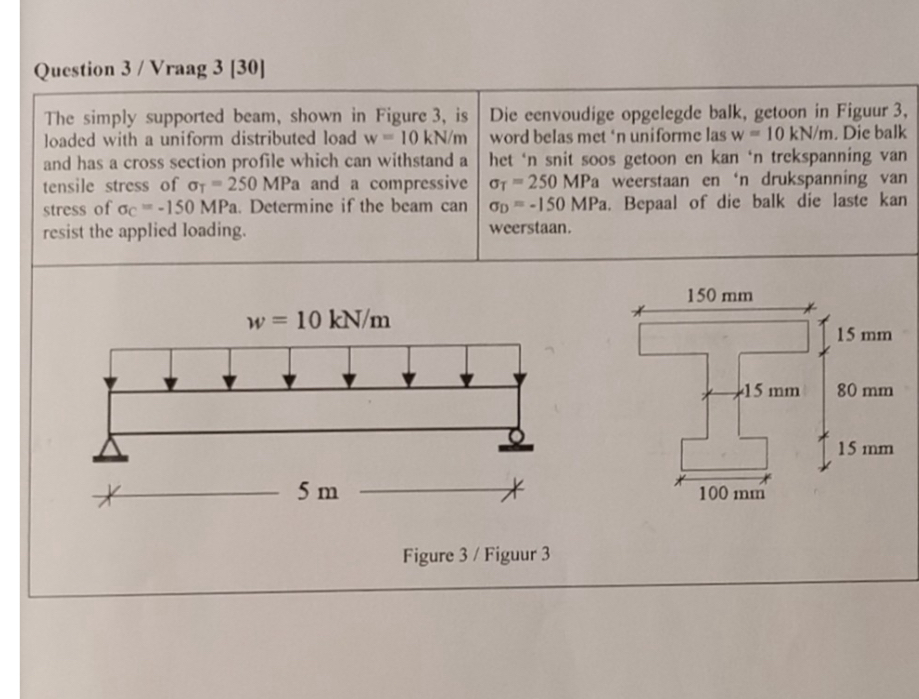

The simply supported beam, shown in Figure 3, is loaded with a uniform distributed load w =10kNm and has a cross section profile which can withstand a tensile stress of T=250MPa and a compressive stress of C=-150MPa. Determine if the beam can resist the applied loading.
Question 3 ? Vraag 3 [ 3 0 ] The simply supported

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
