Question: Question 4 ( 2 5 points ) A bridge truss is loaded as shown. Using the method of sections, determine the forces in members DF

Question 4(25 points)

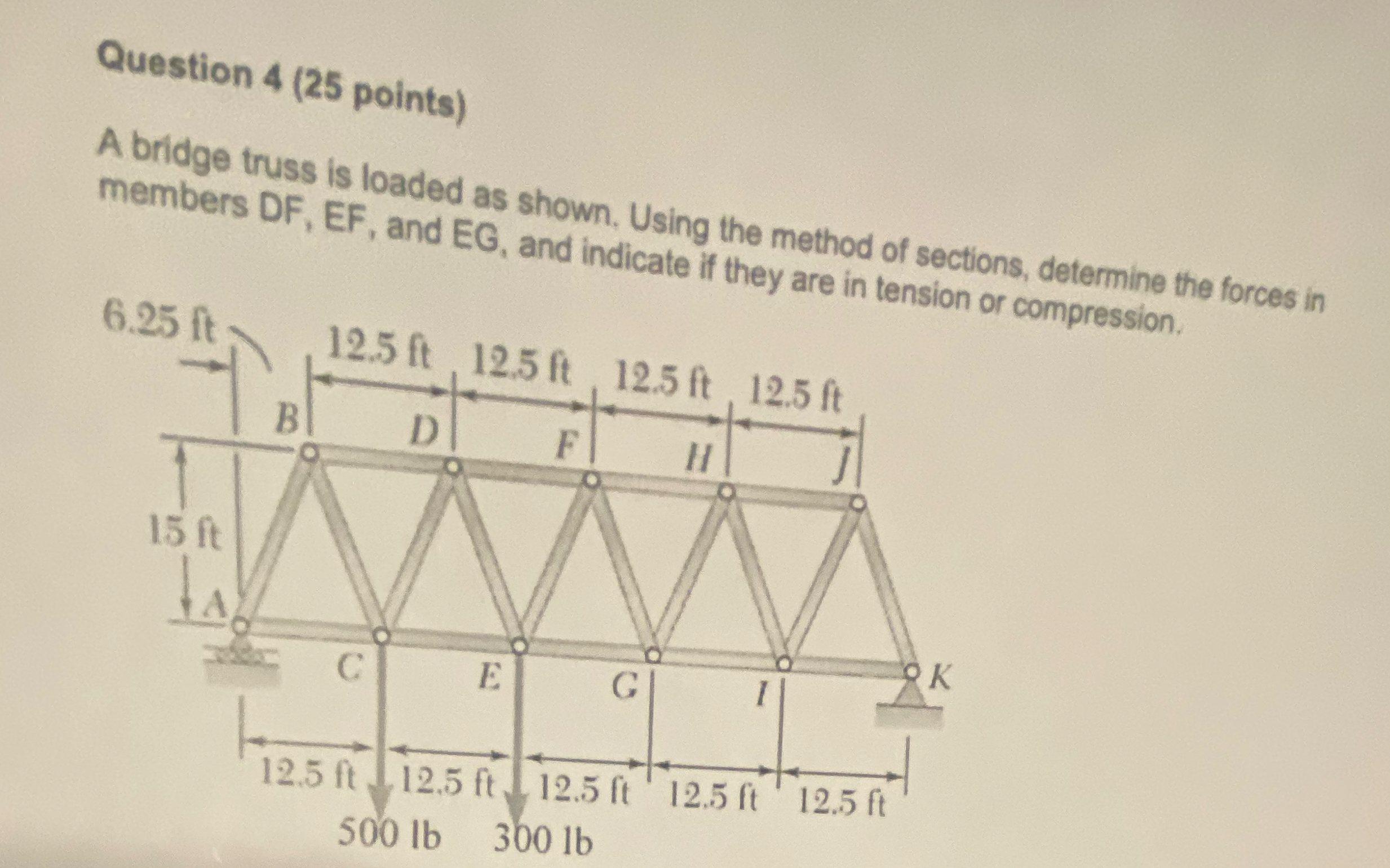

A bridge truss is loaded as shown. Using the method of sections, determine the forces in members DF, EF, and EG, and indicate if they are in tension or compression.
Question 4 ( 2 5 points ) A bridge truss is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
