Question: Question 4 ( 5 5 points ) : Consider the circuit below and do the following, ( i ) Find the current supplied by the

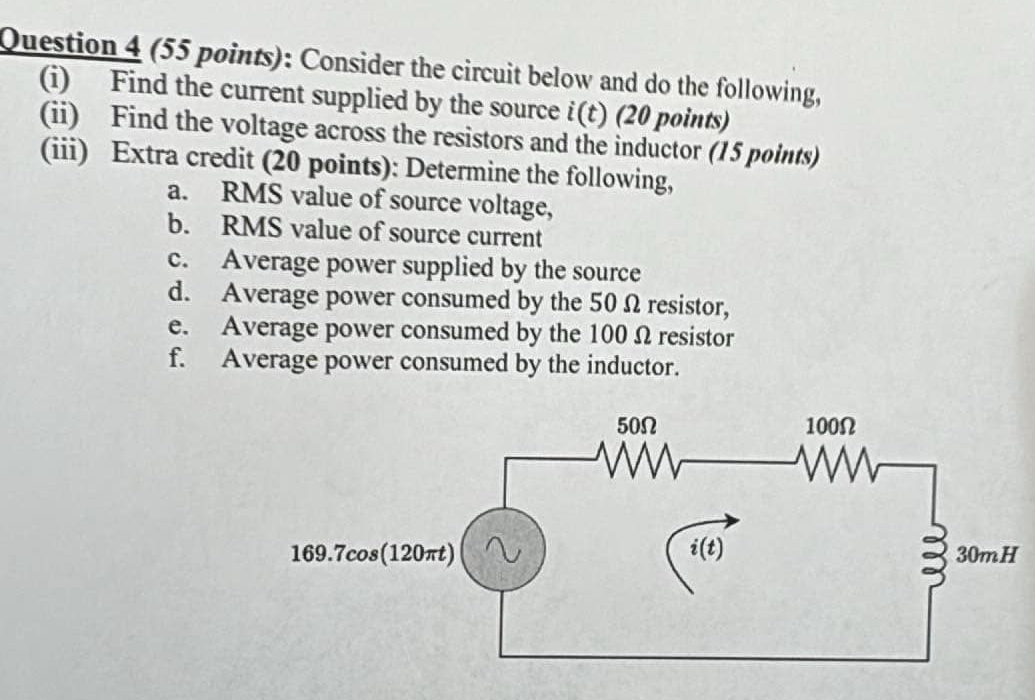

Question 4(55 points): Consider the circuit below and do the following,
(i) Find the current supplied by the source i(t)(20 points)
(ii) Find the voltage across the resistors and the inductor (15 points)
(iii) Extra credit (20 points): Determine the following,
a. RMS value of source voltage,
b. RMS value of source current
c. Average power supplied by the source
d. Average power consumed by the 50 resistor,
e. Average power consumed by the 100 resistor
f. Average power consumed by the inductor.
Question 4 ( 5 5 points ) : Consider the circuit

Step by Step Solution

There are 3 Steps involved in it
