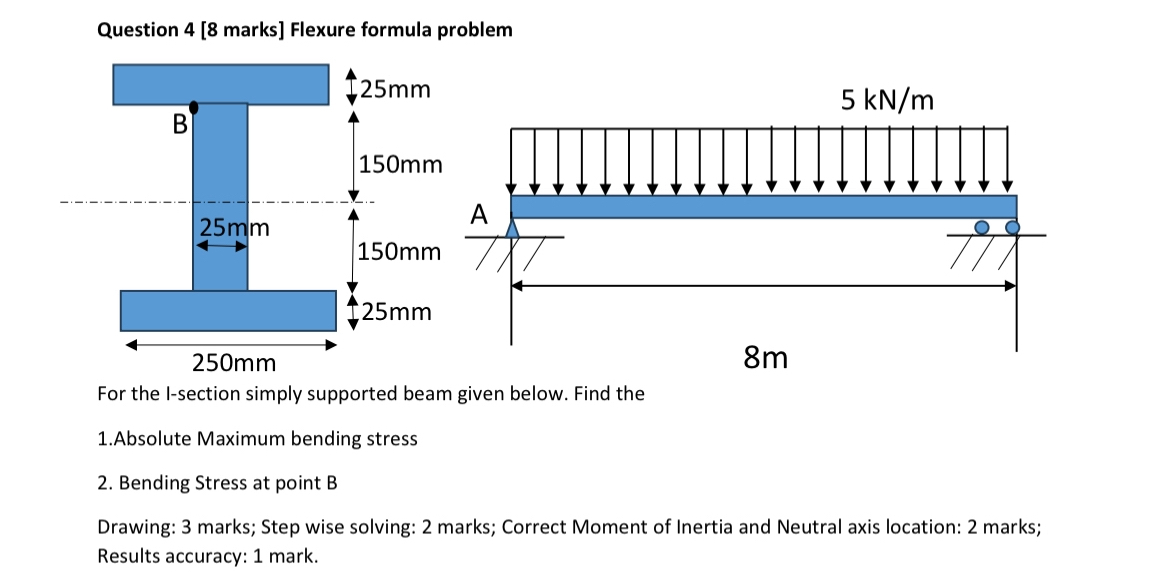

Question 4[8 marks] Flexure formula problem
For the l-section simply supported beam given below. Find the
1.Absolute Maximum bending stress
2. Bending Stress at point B
Drawing: 3 marks; Step wise solving: 2 marks; Correct Moment of Inertia and Neutral axis location: 2 marks; Results accuracy: 1 mark.
