Question: Question 4 . [ 8 points ] DETERMINE THE MAXIMUM DEFLECTION VALUE OF BEAM GIVEN BELOW BY USING OF OF CONJUGATE BEAM METHOD.. Section of

Question 4.[8 points]

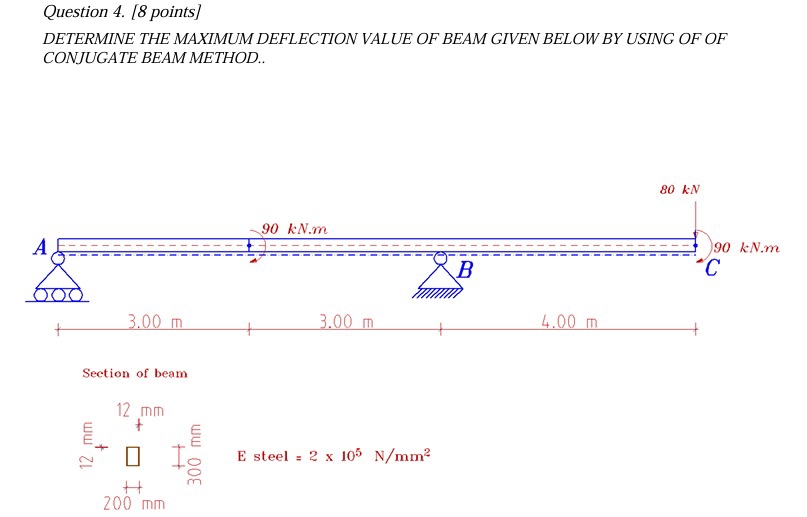

DETERMINE THE MAXIMUM DEFLECTION VALUE OF BEAM GIVEN BELOW BY USING OF OF CONJUGATE BEAM METHOD..
Section of beam
E steel =2105Nmm2
Question 4 . [ 8 points ] DETERMINE THE MAXIMUM

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
