Question: Question 4 . A 1 0 - ft boom is acted upon by the ( 8 4 0 - mathrm { lb }

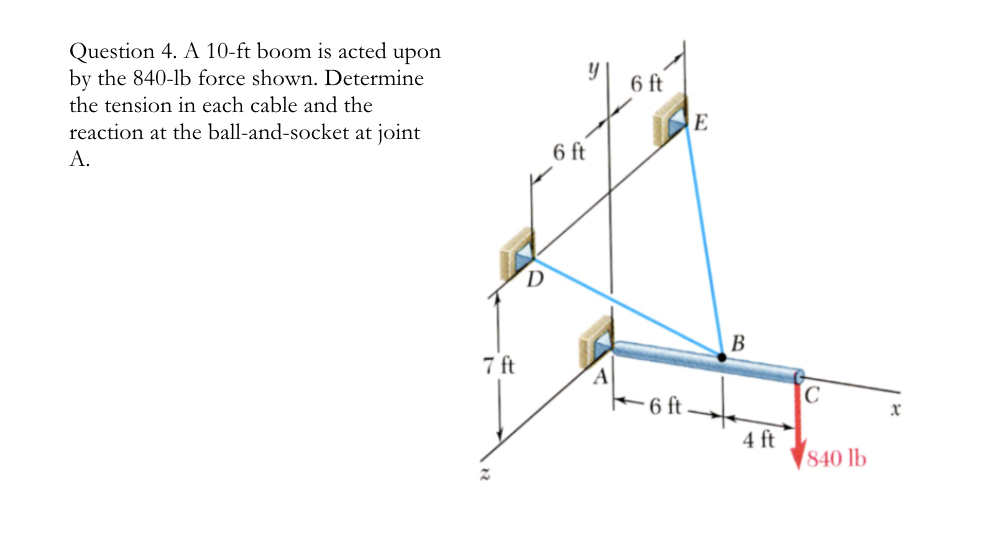

Question 4. A 10-ft boom is acted upon by the \(840-\mathrm{lb}\) force shown. Determine the tension in each cable and the reaction at the ball-and-socket at joint A.
Question 4 . A 1 0 - ft boom is acted upon by the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

A 10-ft boom is acted upon by the 840-lb force shown. Determine the tension in each cable and the reaction at the ball-and-socket joint at A. 6 ft 6 ft 7 ft 6 ft 4 ft 40 lb
