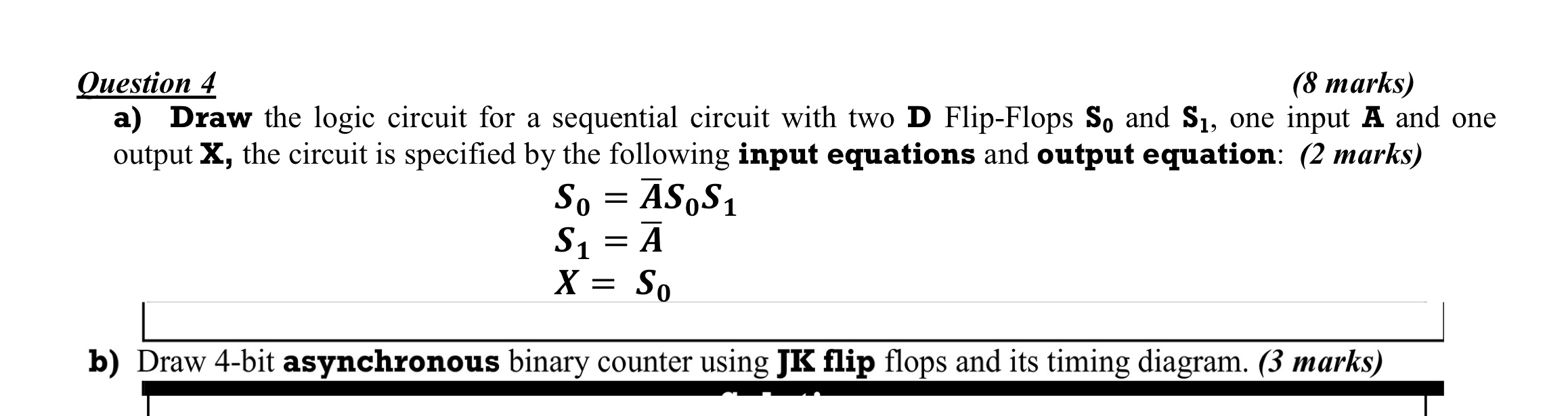

Question: Question 4 aD Flip - Flops S _ ( 0 ) and S _ ( 1 ) , one input A and one output x

Question 4
aD Flip-Flops S_(0) and S_(1), one input A and one
output x, the circuit is specified by the following input equations and output equation: (2 marks)
S_(0)()/(b)=ar (A)S_(0)S_(1)
S_(1)()/(b)=ar (A)
x=S_(0)
b) Draw 4-bit asynchronous binary counter using JK flip flops and its timing diagram.
DO PART b!!
Question 4 aD Flip - Flops S _ ( 0 ) and S _ ( 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
