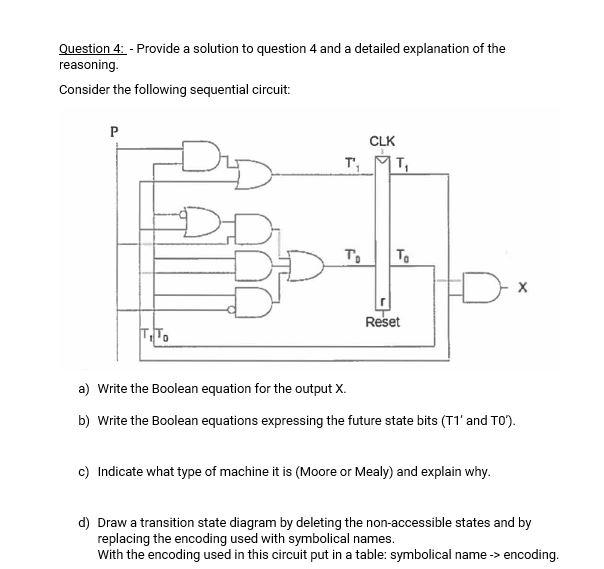

Question 4 - Provide a solution to question 4 and a detailed explanation of the reasoning Consider the following sequential circuit: CLK Reset a) Write the Boolean equation for the output X. b) Write the Boolean equations expressing the future state bits (T1' and TO). c) Indicate what type of machine it is (Moore or Mealy) and explain why d) Draw a transition state diagram by deleting the non-accessible states and by replacing the encoding used with symbolical names. With the encoding used in this circuit put in a table: symbolical name > encoding Question 4 - Provide a solution to question 4 and a detailed explanation of the reasoning Consider the following sequential circuit: CLK Reset a) Write the Boolean equation for the output X. b) Write the Boolean equations expressing the future state bits (T1' and TO). c) Indicate what type of machine it is (Moore or Mealy) and explain why d) Draw a transition state diagram by deleting the non-accessible states and by replacing the encoding used with symbolical names. With the encoding used in this circuit put in a table: symbolical name > encoding
