Question: Question: 4 The figure below shows a non - concurrent system of forces acting on a beam. Consider the equilibrium conditions and calculate the reactions.

Question: 4

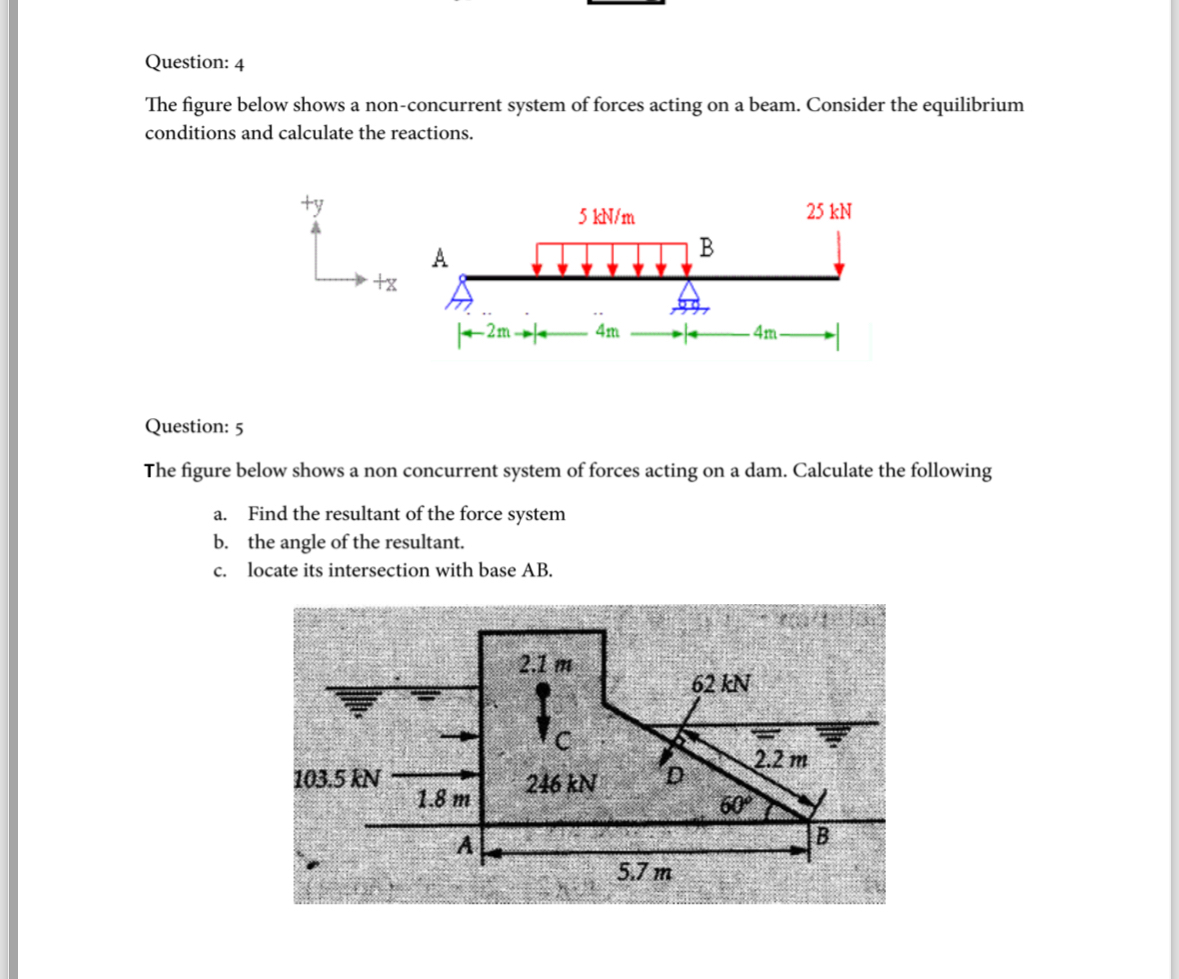

The figure below shows a non-concurrent system of forces acting on a beam. Consider the equilibrium conditions and calculate the reactions.
Question: 5
The figure below shows a non concurrent system of forces acting on a dam. Calculate the following
a. Find the resultant of the force system
b. the angle of the resultant.
c. locate its intersection with base AB.
Question: 4 The figure below shows a non -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
