Question: Question 4 The structure below is built - in at O and is also supported by a single cable that passes through a frictionless ring

Question 4

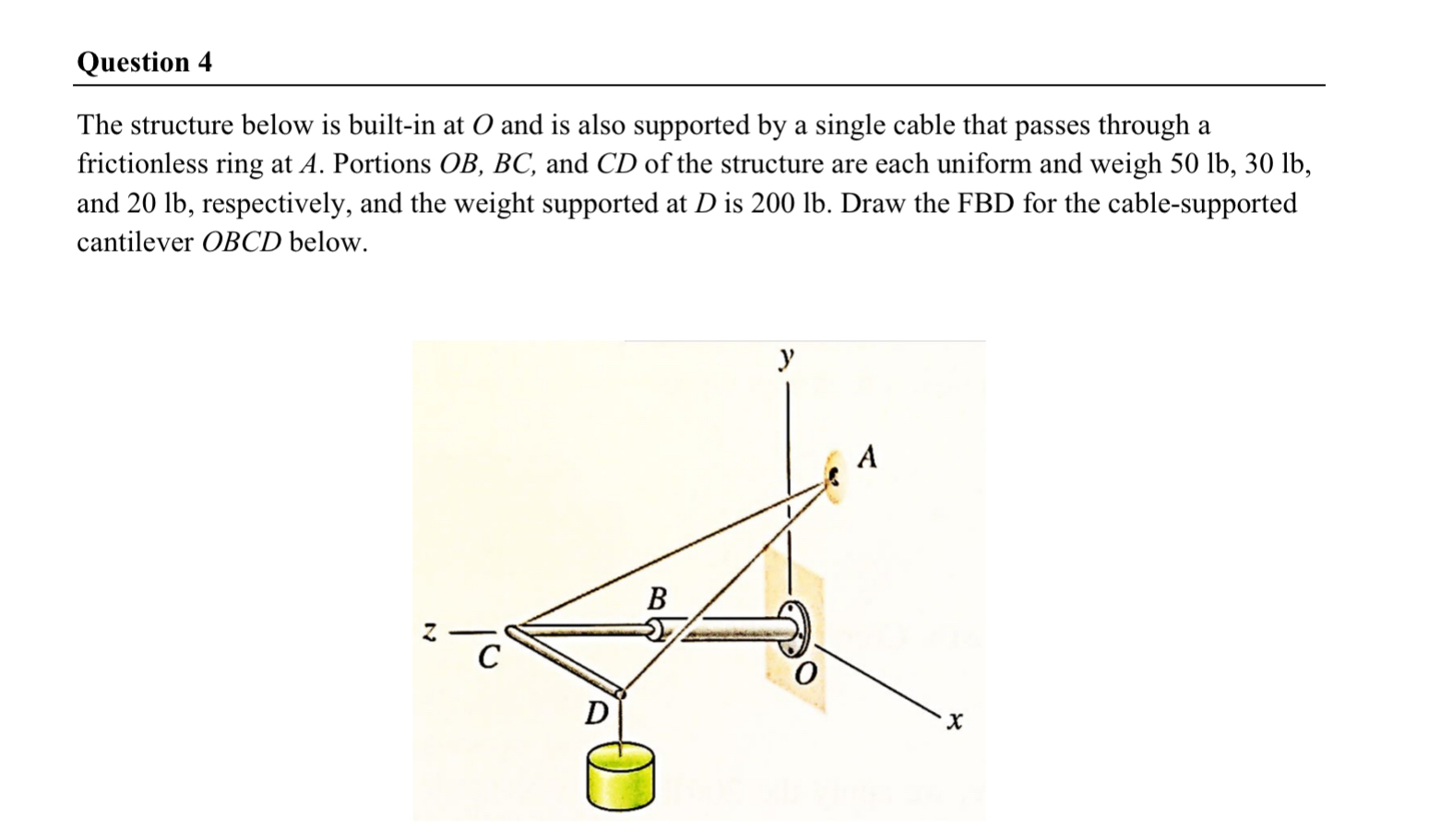

The structure below is built-in at O and is also supported by a single cable that passes through a frictionless ring at A. Portions OB,BC, and CD of the structure are each uniform and weigh 50lb,30lb, and 20 lb , respectively, and the weight supported at D is 200 lb . Draw the FBD for the cable-supported cantilever OBCD below.
Question 4 The structure below is built - in at O

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
