Question $4/$ Vraag $4[30]$

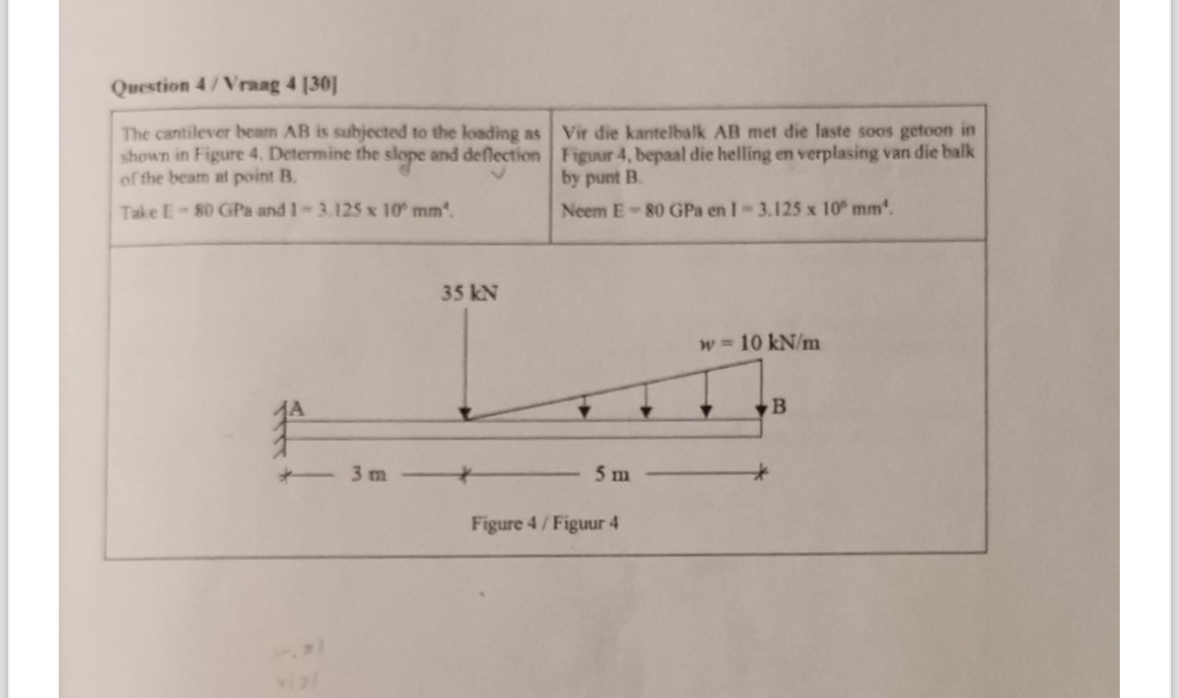

The cantilever beam $AB$ is subjected to the loading as shown in Figure $4.$ Determine the slope and deflection of the beam at point B$.$

Take $E=80$GPa and $1=3\mathrm{.}125{10}^{6}m{m}^4.$

Vit die kantelbalk AB met die laste soos getoon in Figuur $4,$ bepaal die helling en verplasing van die balk by punt B$.$

Neem E $=80$ GPa en I $=3\mathrm{.}12510$

Question $4/$ Vraag $4[30]$

The cantilever beam $AB$ is subjected to the loading as shown in Figure $4.$ Determine the slope and deflection of the beam at point B$.$

Take $E=80$GPa and $1=3\mathrm{.}125{10}^{6}m{m}^4.$
