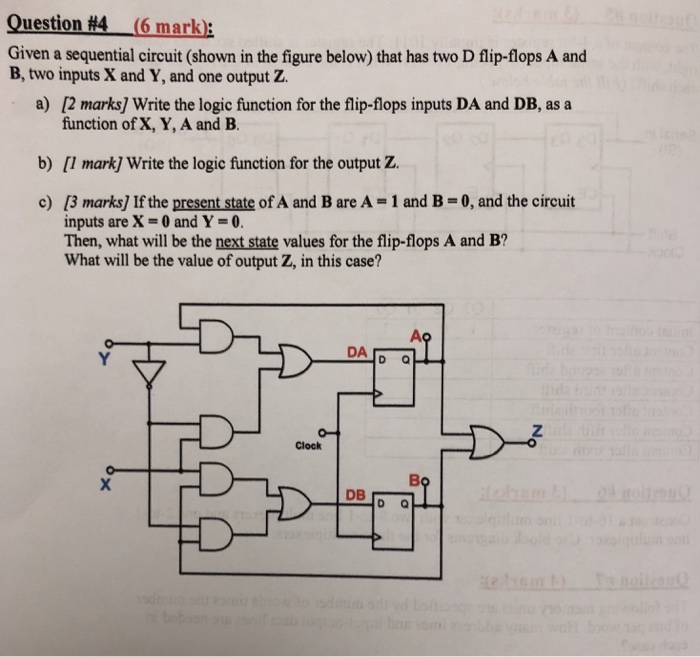

Question #4.6 mark): Given a sequential circuit (shown in the figure below) that has two D flip-flops A and B, two inputs X and Y, and one output Z. a) [2 marks] Write the logic function for the flip-flops inputs DA and DB, as a function of X, Y, A and B. b) [I markJ Write the logic function for the output Z. 13 marks] If the present state of A and B are A = 1 and B-0, and the circuit inputs are X = 0 and Y = 0. Then, what will be the next state values for the flip-flops A and B? What will be the value of output Z, in this case? c) DA Clock DB
