Question: Question 5 1 4 pts Maximum Shear and Moment: Given the following beam loading diagrar What are the maximum shear and moment values with correct

Question 5
14 pts
Maximum Shear and Moment:

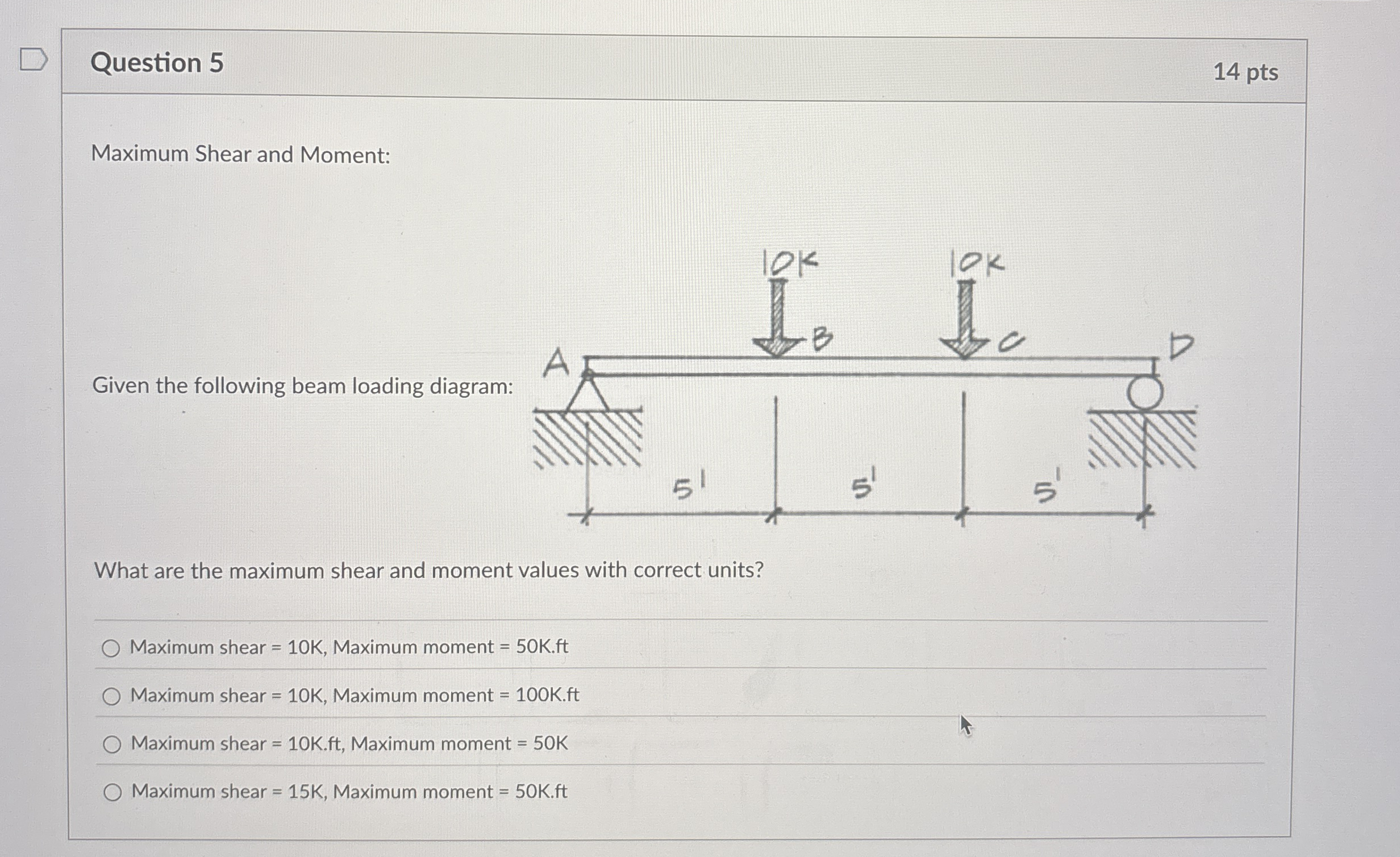

Given the following beam loading diagrar
What are the maximum shear and moment values with correct units?
Maximum shear =10K, Maximum moment =50K.ft
Maximum shear =10K, Maximum moment =100K.ft
Maximum shear =10K.ft, Maximum moment =50K
Maximum shear =15K, Maximum moment =50K.ft
Question 5 1 4 pts Maximum Shear and Moment:

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
