Question 5(20 Points)

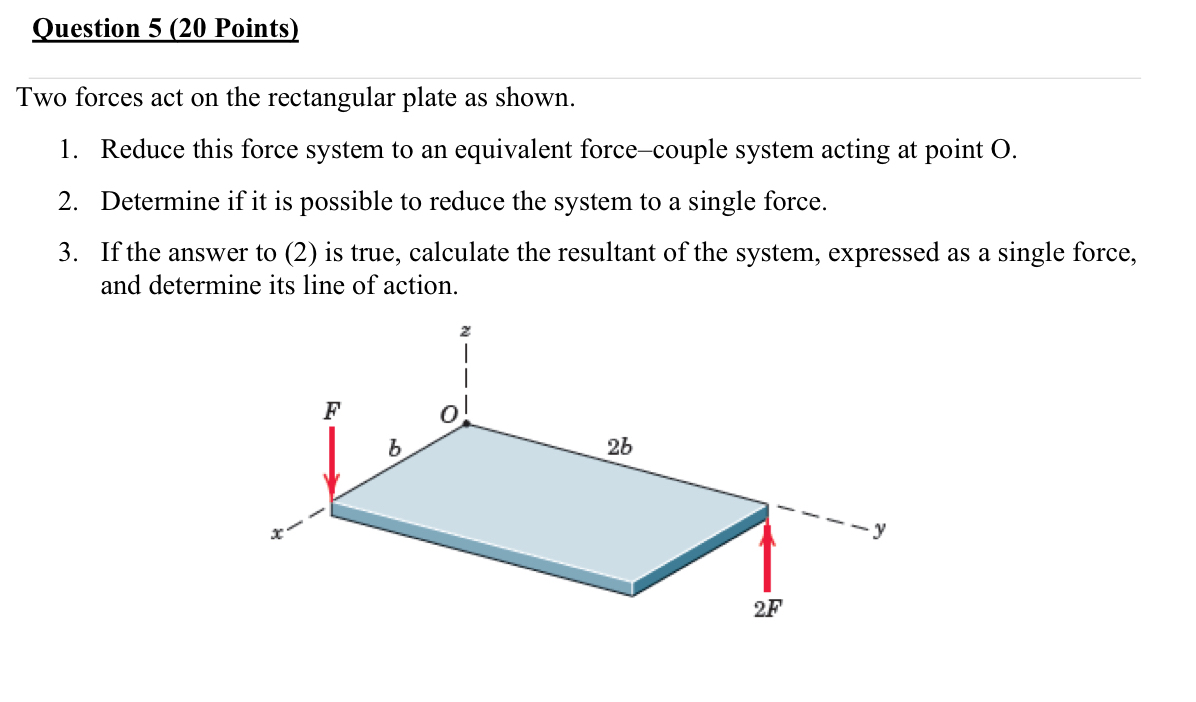

Two forces act on the rectangular plate as shown.
Reduce this force system to an equivalent force-couple system acting at point O .
Determine if it is possible to reduce the system to a single force.
If the answer to (2) is true, calculate the resultant of the system, expressed as a single force, and determine its line of action.
