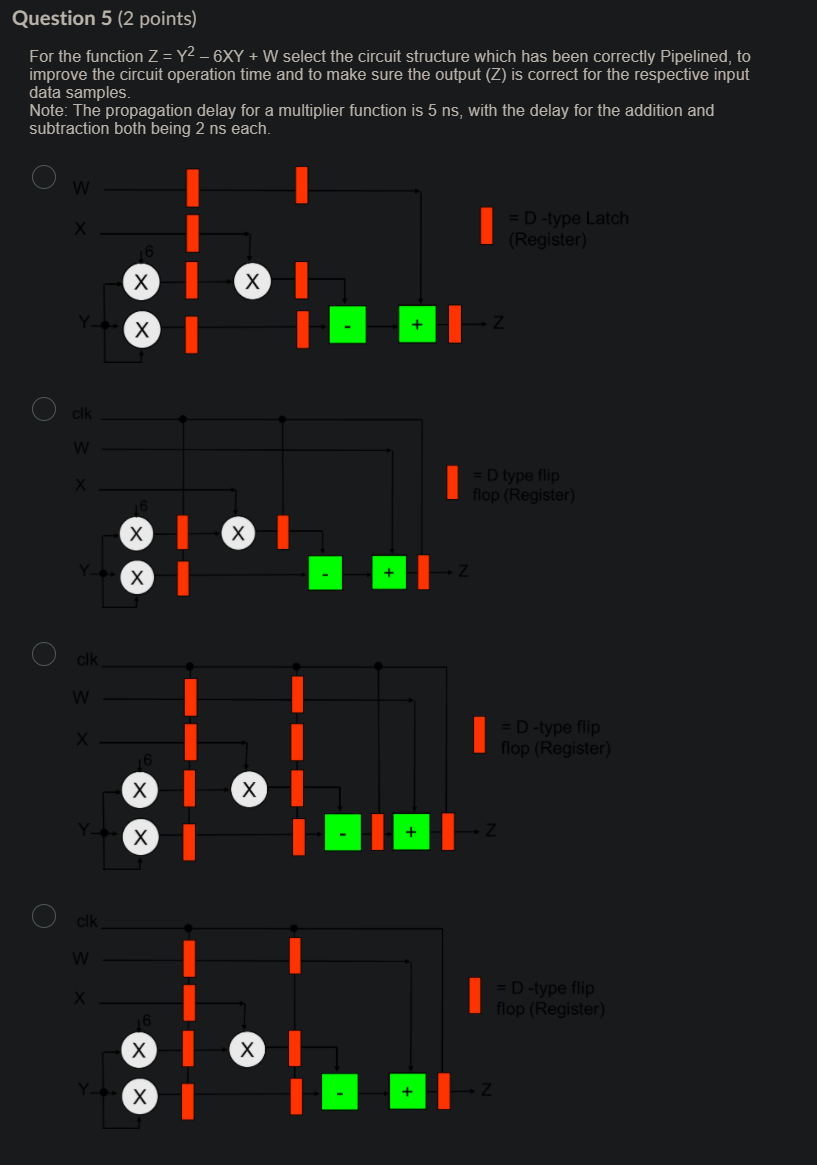

Question 5 (2 points) For the function Z = y2 6XY + W select the circuit structure which has been correctly Pipelined, to improve the circuit operation time and to make sure the output (Z) is correct for the respective input data samples. Note: The propagation delay for a multiplier function is 5 ns, with the delay for the addition and subtraction both being 2 ns each. = D-type Latch (Register) x x Yx + clk W = D type flip flop (Register) X Y. x clk W X = D-type flip flop (Register) x x Yx + clk W ED-type flip flop (Register) x Yox Question 5 (2 points) For the function Z = y2 6XY + W select the circuit structure which has been correctly Pipelined, to improve the circuit operation time and to make sure the output (Z) is correct for the respective input data samples. Note: The propagation delay for a multiplier function is 5 ns, with the delay for the addition and subtraction both being 2 ns each. = D-type Latch (Register) x x Yx + clk W = D type flip flop (Register) X Y. x clk W X = D-type flip flop (Register) x x Yx + clk W ED-type flip flop (Register) x Yox
