Question: Question 5 . Given wheel moves to the left such that it has an angular acceleration of 8 r a d s 2 and angular

Question 5.

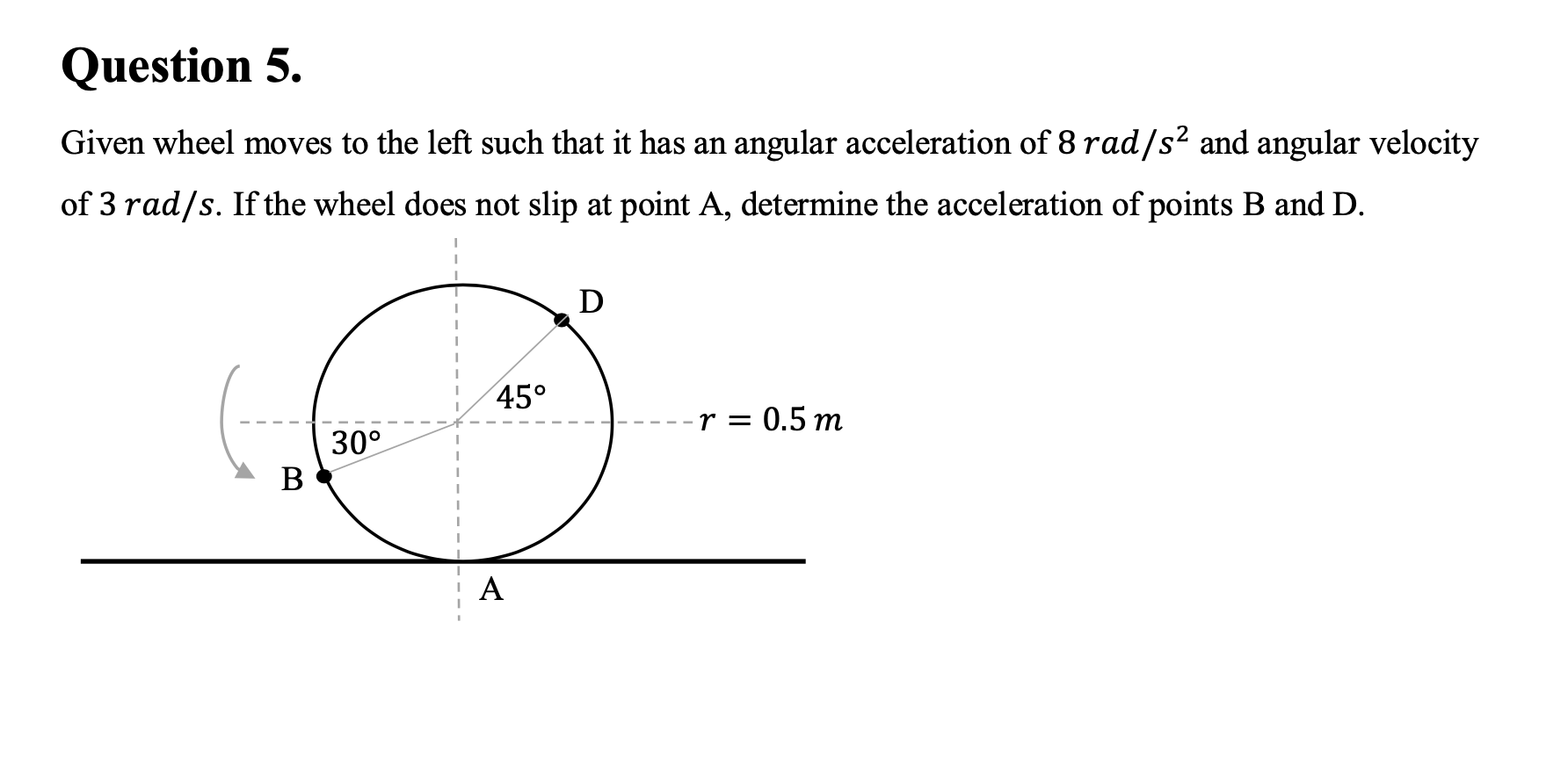

Given wheel moves to the left such that it has an angular acceleration of 8rads2 and angular velocity of 3rads. If the wheel does not slip at point A, determine the acceleration of points B and D.
Question 5 . Given wheel moves to the left such

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
