Question: Question 6 [ 4 marks ] What is the output function Out for the following multiplexer in the standard sum of product: Please show all

Question 6[4 marks]

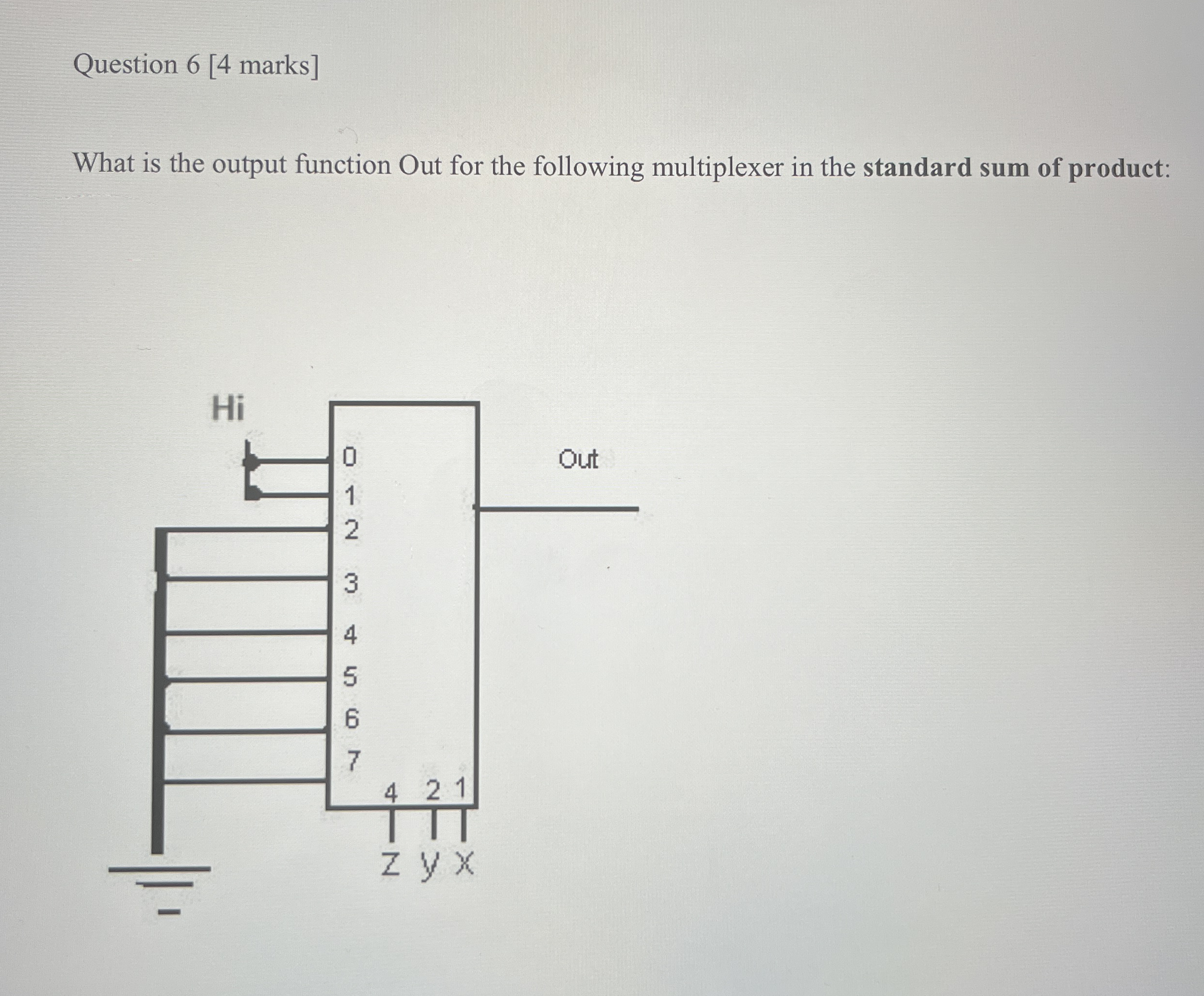

What is the output function Out for the following multiplexer in the standard sum of product:
Please show all steps on what to do, thank you!
Question 6 [ 4 marks ] What is the output

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
