Question: Question 7 : 1 6 Marks ( 7 . 1 ) Construct the Truth table for the following Boolean function f ( x , y

Question 7: 16 Marks

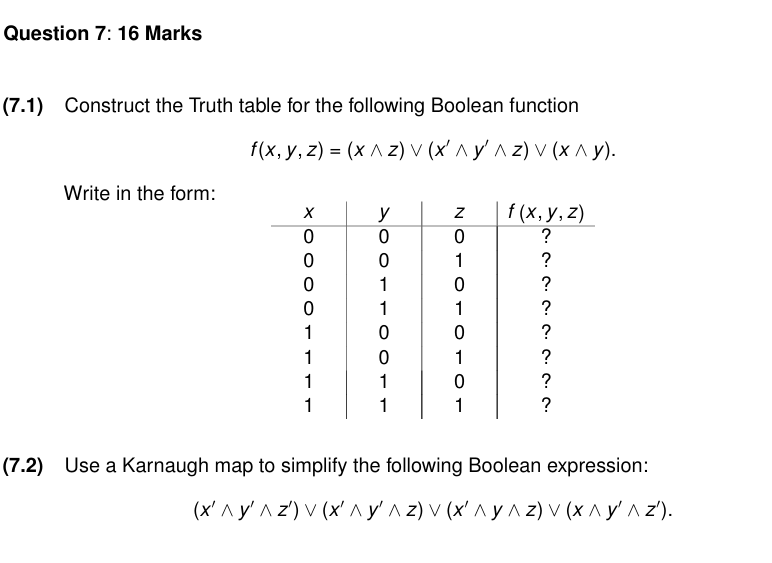

(7.1) Construct the Truth table for the following Boolean function
f(x,y,z)=(x??z)vv(x'???y'???z)vv(x??y)
Write in the form:
(7.2) Use a Karnaugh map to simplify the following Boolean expression:
(x'???y'???z')vv(x'???y'???z)vv(x'???y??z)vv(x??y'???z')
Question 7 : 1 6 Marks ( 7 . 1 ) Construct the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
