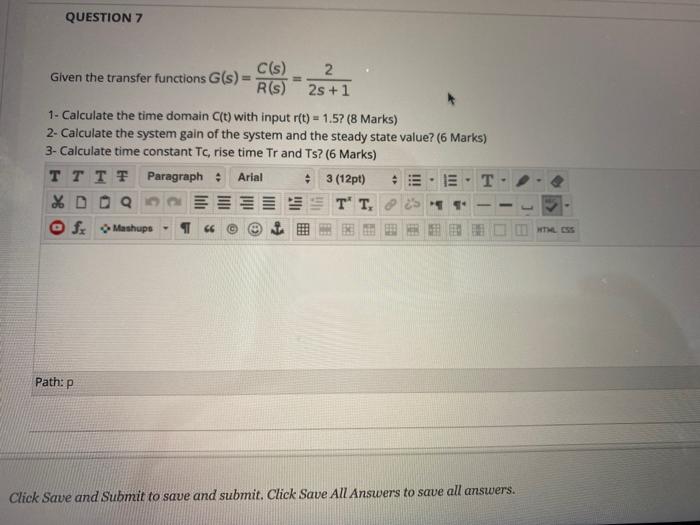

Question: QUESTION 7 C(s) 2 Given the transfer functions G(s) = R(S) 2s +1 1- Calculate the time domain C(t) with input r(t) - 1.5? (8

QUESTION 7 C(s) 2 Given the transfer functions G(s) = R(S) 2s +1 1- Calculate the time domain C(t) with input r(t) - 1.5? (8 Marks) 2- Calculate the system gain of the system and the steady state value? (6 Marks) 3- Calculate time constant Tc, rise time Tr and Ts? (6 Marks) TT TT Paragraph Arial 3 (12pt) T % DOO T' T, fr Mashups - 16 WTL OSS Path:p Click Save and Submit to save and submit. Click Save All Answers to save all answers
